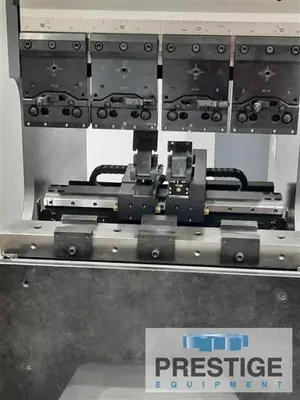

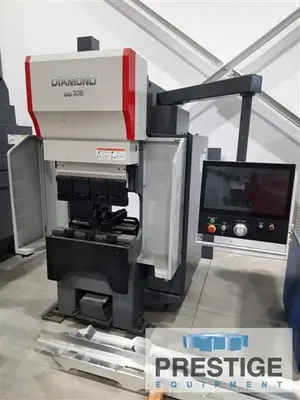

USED 2019 MITSUBISHI DIAMOND BB306

CAPACITY:
Maximum Tonnage Capacity: 30 Ton
Maximum Bending Length: 24.8"
Distance Between Housings: 27.55"
Stroke Length: 5.9"
Open Height: 16.92"
Approach Speed: 224 IPM
Bending Speed: 47 IPM
Return Speed: 224 IPM
Floor Space: 87" L x 44" Wide x 95" High
Weight of Brake: 6,300 Lbs.

Equipped With:
Mitsubishi CNC Control with 22" Touch Screen
5-Axis High Speed Back Gauge
Ballscrew Drive Mechanism
Integrated Side Guards
Foldable Front Support Table

Features:
Mitsubishi CNC Control with 22" Touch Screen
5-Axis High Speed Back Gauge
Ballscrew Drive Mechanism
Integrated Side Guards
Foldable Front Support Table
