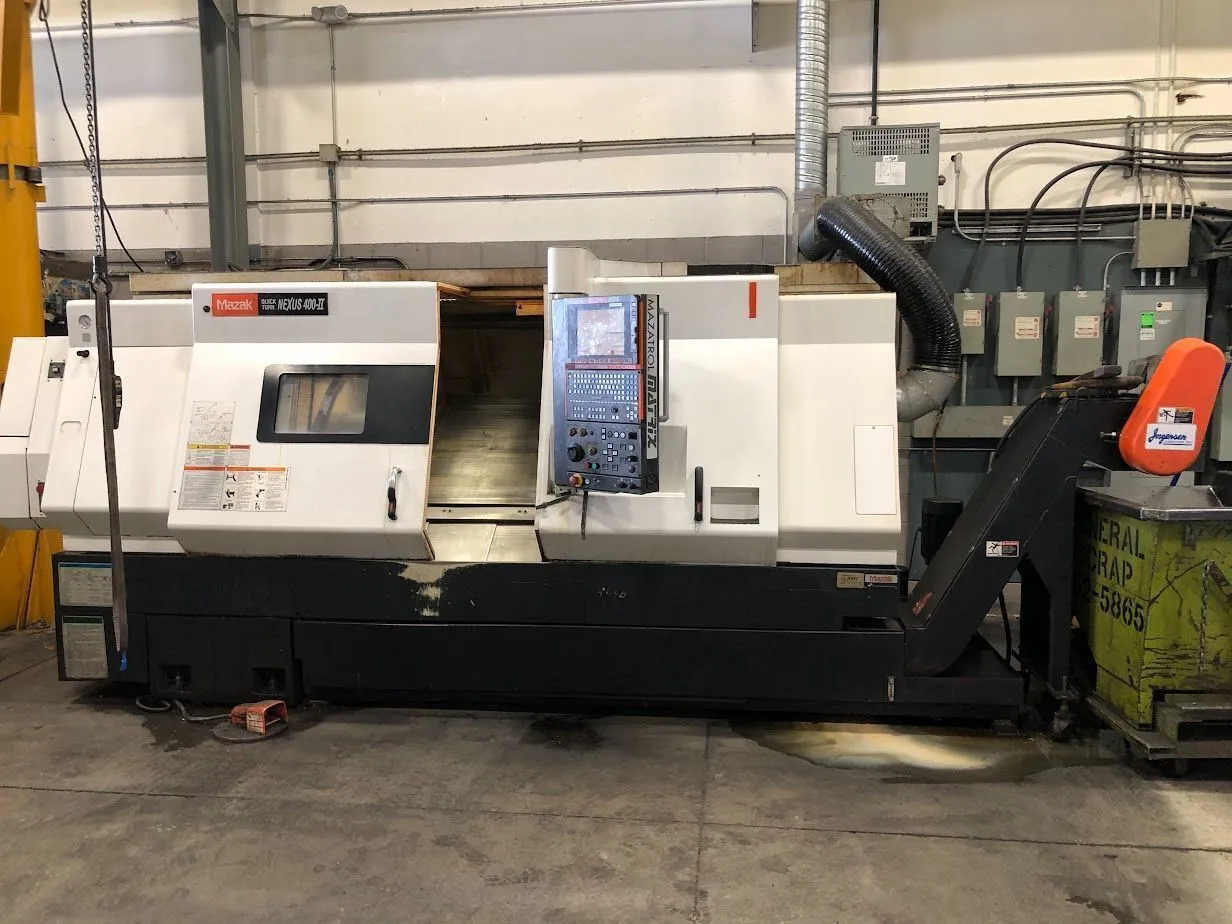

USED 2011 MAZAK QTN-400-II

SWING OVER BED 33.27"
MAX TURNING DIAMETER 23.0"
MAX. LENGTH BETWEEN CENTERS 40.0"
TUNING LENGTH 40.0”
X-AXIS TRAVEL 12.13"
Z-AXIS TRAVEL 42.13"
CHUCK SIZE (3 JAW) 15"
SPINDLE BORE DIA. 4.0"
SPINDLE SPEED (2 RANGES) 2500 RPM
MAIN SPINDLE MOTOR 50 HP
TURRET TYPE AUTO INDEXING
NO. OF TOOL STATIONS 12 POSITION
SQUARE TOOL SHANK SIZE 1.25"
MACHINE WEIGHT 19,000 LBS
MACHINE DIMENSIONS (LWH) 210” x 84” x 82”
ELECTRICAL REQUIREMENTS 575 VAC, 100 AMPS, 78 kVA

- Mazatrol Matrix Nexus Control
- Chip Conveyor
- Coolant Tank
- Tool Pre-setter
- Tailstock
- 15" Kitagawa Hydraulic Chuck

INSPECT IN PLANT UNDER POWER
