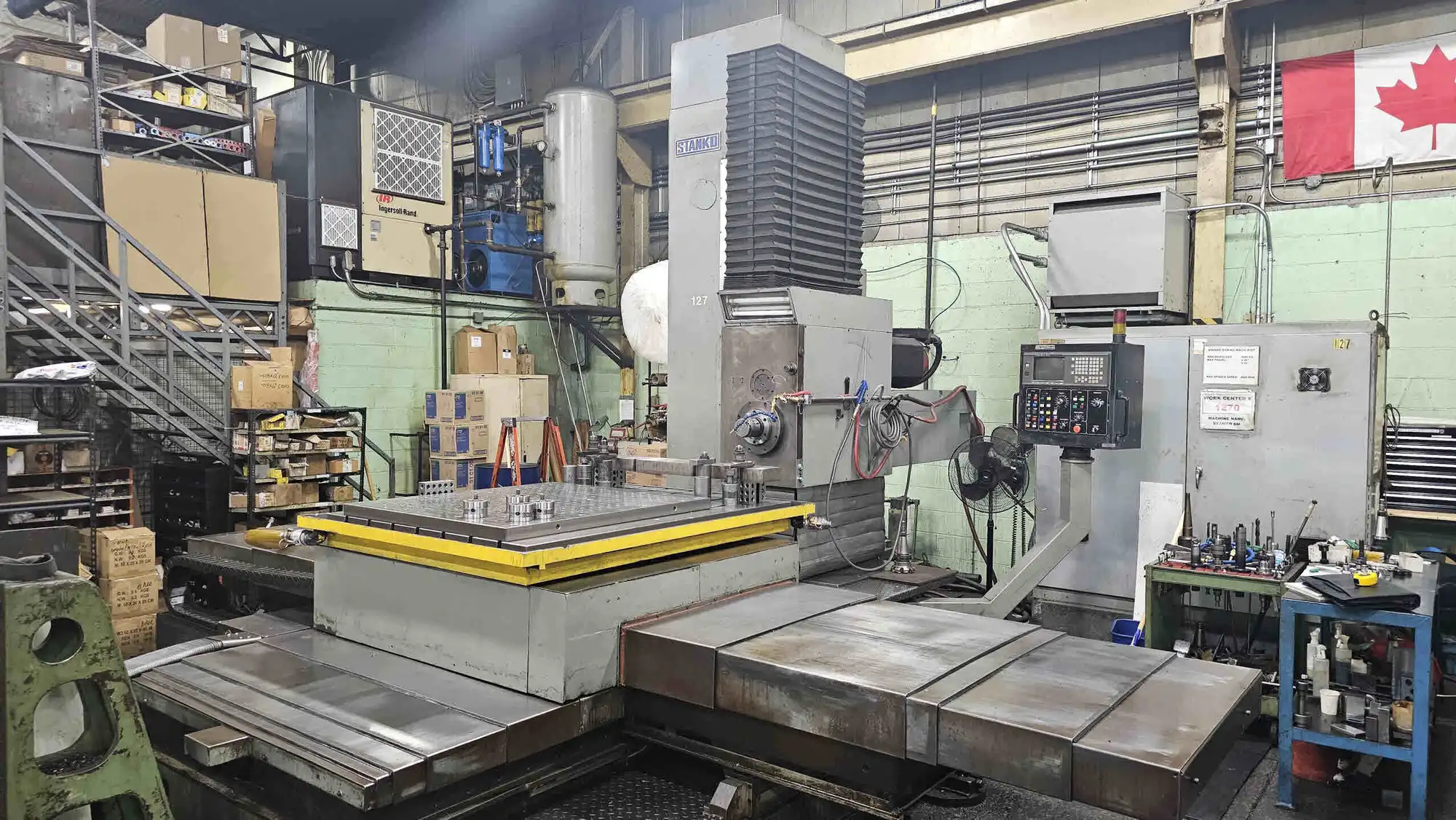

Machine is in Excellent Condition & Ready For Inspection.
| Spindle Size | 5" | 127 mm |
| X-Horiz Tvl of Table | 80" | 2,032 mm |
| Y-Vert Tvl of Head | 63" | 1,600.2 mm |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 49.5" | 1,257.3 mm |
| Table-L | 63" | 1,600.2 mm |
| Spindle Tvl. | 28" | 711.2 mm |
| Control | CNC (GE Fanuc Series 16M) | CNC (GE Fanuc Series 16M) |
| Dimensions | 235”L x 203”W x 152”H | 235”L x 203”W x 152”H |
| Weight | 21,000 KG | 21,000 KG |
Specifications:
Model - 2B622F4
Spindle Diameter - 5”
Rotary Table Size - 49.5” x 63”
Cross Travel (X Axis) - 80”
Vertical Travel (Y Axis) - 63”
Longitudinal Travel (W Axis) - 40”
Spindle Travel (Z Axis) - 28”
Spindle Taper - ISO50
Max Spindle Speed - 2500 RPM
Max Load On Table - 5,000 KG
Control - Fanuc
Electrics - 600V/3PH/60HZ
Made In - Russia
Approximate Weight - 21,000 KG
Approximate Overall Dimension - 235”L x 203”W x 152”H
Equipped With:

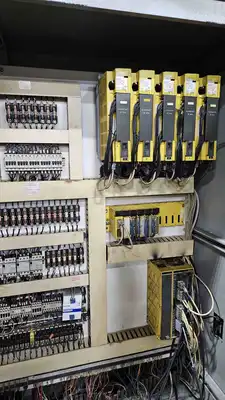

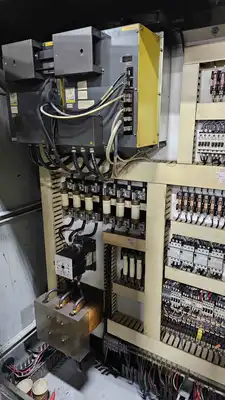

GE Fanuc Series 16-M CNC Control

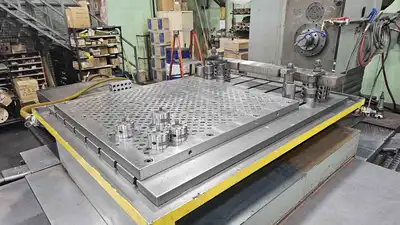

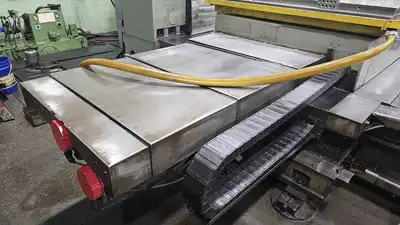

Built In 360 Degrees T-Slotted Rotary Table
Coolant System

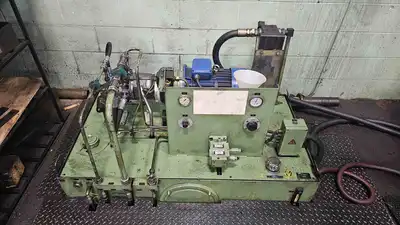

Hydraulic Unit
Harden Ways
Chillier Unit
Work Light
