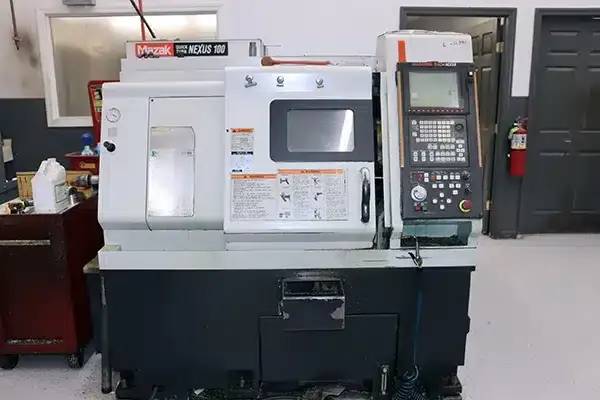

Mazak Nexus 100 – 2004

MAZAK QT Nexus 100 / QTN-100 / QTN100
SPECIFICATIONS

MAX SWING 21.6″

MAX CUTTING DIAMETER 11″

MAX MACHINING LENGTH 12.1″

BAR WORK CAPACITY 2″

X-AXIS TRAVEL 7.5″

Z-AXIS TRAVEL 13″

MAX. SPINDLE SPEED 6,000 RPM

MAIN SPINDLE NOSE A2-5

SPINDLE BORE 2.4 In

SPINDLE NOSE A2-5

TURRET TYPE Drum

TOOL CAPACITY 12

RAPID TRAVERSE X 1181 IPM

RAPID TRAVERSE Z 1299 IPM

TAILSTOCK BODY STROKE 13.7″

SPINDLE DRIVE MOTOR 10/ 15 HP

OPTIONS / EQUIPPED WITH

•6″ COLLET CHUCK • PARTS CATCHER

•TAILSTOCK • TOOL PRESETTER

•9500 CUTTING HOURS
