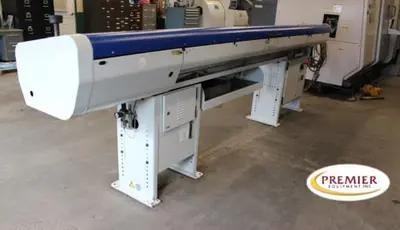

Iemca Boss 551E 12’ Barfeed
MACHINE DESCRIPTION: The Iemca Boss 551-E is Designed to Deliver a Capacity to Withstand the Highest Levels of Strain During Machining Processes, Not to Mention a Remarkable Degree of Operating Flexibility. Bar Changeover From One Diameter to Another Has Never Been Simpler or Quicker, Making the Boss the Ideal Partner for Lathes that Frequently Alternate Machining Types During the Same Day.
Round Bar Diameter Capacity …………………. 3/16″ to 2″
Hex Bar Capacity……………………………. 3/16″ to 1-9/16″
Magazine Capacity…………………………… 11″
Remnant Length……………………………… 15.7″
Maximum Feed Length For Bars…………………. 145.66″
Feed Speed (Adjustable)……………………… 27 IPM
Return Speed (Adjustable)……………………. 37 IPM
Electrics………………………………….. 230/3/60
Approximate Machine Dimensions……………….. 48″ x 164″
Approximate Machine Height…………………… 60″
Approximate Machine Weight…………………… 2,500 LBS
Pendant Control
Bar Magazine
Fully Automatic Operation
