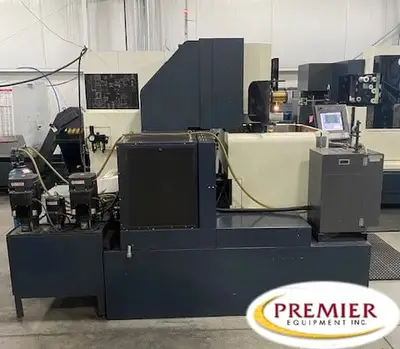

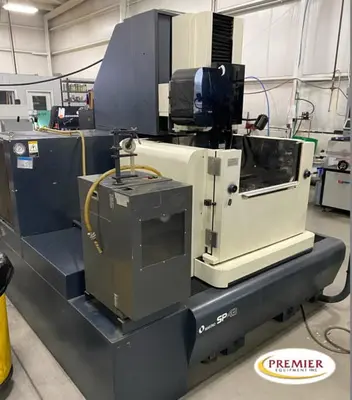

Makino SP43 CNC Wire EDM
Table Size 28.74” x 22.83”
Max Load on Table 1,764 lbs
Travels X, Y, Z 17.8” x 11.8” x 12.6”
Expansion X&Y Axis / U & V Axis +/- .200” / +/- 3.97”
Distance Floor to Table Top 38.18”
Servo Feed .00030 ~ 1.96 IPM
Max Taper Angle +/-15 Degree/3.93 inch thickness
With “C” Guides+/-35 Degree/3.93 inch thickness
Workpiece Size Inside of Worktank 33.5” x 28.35” x 12.6”
Auto Wire Feed Normal Threading Time 15 seconds/30mm thickness, 0.008” wire
Dielectric Work Tank Size 35” x 33.5” x 16”
Machine Dimensions 86” x 100” x 89”
Machine Weight 8487 lbs
MGW-S5 Control
