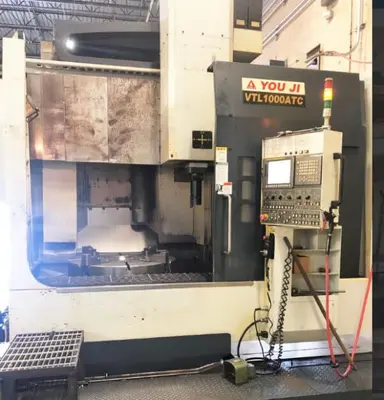

Youji VTL-1000ATC – 2012

Youji VTL1000ATC VTL
CAPACITY:

TABLE DIAMETER 39.37″

MAXIMUM SWING 53.14″

MAXIMUM CUTTING DIAMETER 43.30″

MAXIMUM CUTTING HEIGHT 35.43″

RAIL TRAVEL 20″

RAM STROKE, Z-AXIS 31.49″

TABLE WEIGHT CAPACITY 8,800 LBS

TABLE SPEED, 2-RANGES 1-600 RPM

CUTTING FEED RATE 0.39-78.7 IPM

AUTOMATIC TOOL CHANGER 12 ATC

TOOL SHANK BT-50 7/24

MAIN TABLE MOTOR (220 VOLT) 49 HP/60 HP

MACHINE WEIGHT 64,200 LBS

FANUC OI-TD CNC CONTROL

39.37″ 4-JAW HYDRAULIC INDEPENDENT CHUCK

RAM W/ 12-POSITION AUTOMATIC TOOL CHANGER

CHIP CONVEYOR

60 HP TABLE DRIVE MOTOR

MISC. TOOLING
