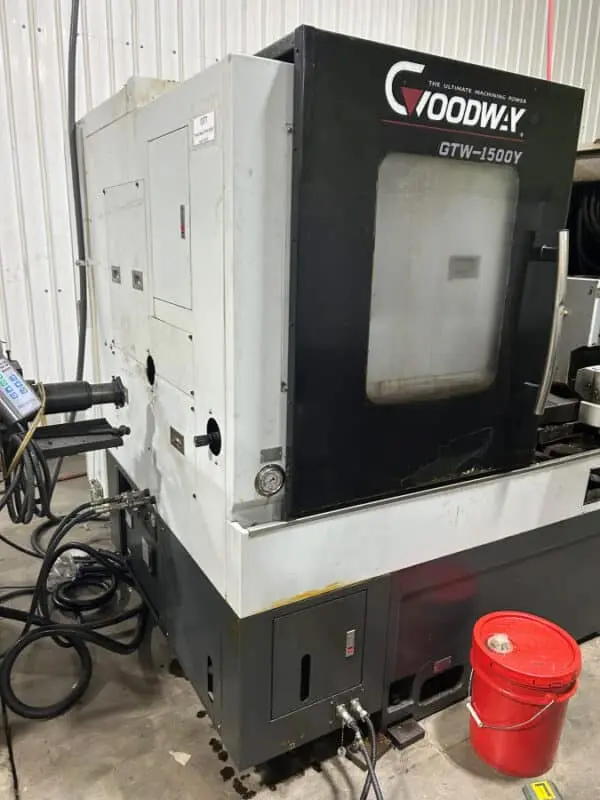

Yama Seiki GTW-1500Y – 2016

Yama Seiki GTW1500Y Turret / Gang Tooling Multi-Axis CNC Turning Center

Capacity

Max. Turning Diameter Live Tooling Turret + Y-axis : 9.84”

Standard Turning Diameter Live Tooling Turret : 9.05”

Max. Turning Length 8.26”

Main Spindle

Bar Capacity 2” (Main Spindle)

Hole through Spindle 2.4”

Spindle Nose A2-6

Max. Spindle Speed 5000 RPM

Spindle Motor Type Fanuc BiI112M/15000

Motor Output (cont./30 min) 15 / 20 HP

FANUC 32I CONTROL WITH GOODWAY G-LINK 350 19 INCH COLOR LCD

Barfeed
