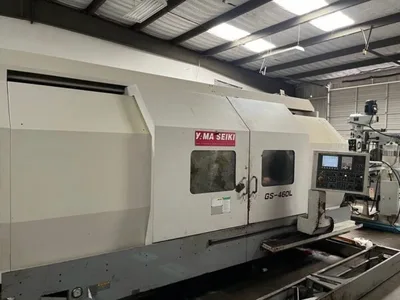

Yama Seiki GS-460L – 2006

YAMA SEIKI GS460L CNC LATHE

CNC control Fanuc Oi-TC

Maximum swing 29”

Swing over saddle 28”

Maximum turning diameter 24”

Standard turning diameter 22”

Center distance 79”

Spindle bore 8”

Spindle nose A-2-15

Chuck SMW Autoblok 24” 3-jaw hydraulic, 10” bore

Main motor 50/60 hp.

Spindle speeds 6-671/1300 rpm, 2 speed gearbox

Travels, X-Z 13” x 80”

Turret stations 12 stations

Tailstock Yes, live quill, 6” travel

Programmable quill/body Yes, Yes

Positioning accuracy +/- 0.0002”

Repeatability accuracy +/- 0.0001”

Voltage 220/3/60

Power requirement 60 kVA

Coolant Yes, 168 gallons

Weight 33,000 lbs.

Machine dimensions 17’ 6” W x 8’ 6” L x 8’ 6” H

Chip pan dimensions 17’ 6” W x 8’ 6” L

Chip conveyor dimensions 15” X x 2’ 4” W x 6’ H
