2008 TSUGAMI SS20
MACHINING DIAMETER 0.75″
MAX MACHINING LENGTH 8.66″
MAX DRILLING DIAMETER 0.39″
MAIN SPINDLE MOTOR 5 hp
MAIN SPINDLE SPEED 10,000 RPM
BACK SPINDLE MOTOR 5 hp
BACK SPINDLE SPEED 10,000 RPM
TOTAL TOOL CAPACITY (POSITIONS) 24
LIVE TOOL SPEEDS 5,000 RPM
CONTROLLABLE AXES 7
CONTROL CNC (FANUC)
FANUC 31i CONTROL
FMB TURBO 3-26 MAGAZINE BARFEEDER (12′)
HIGH-PRESSURE COOLANT SYSTEM (2,000 PSI, 4-PORT)
TRI-MIST MIST COLLECTOR
LNS CHIP CONVEYOR (REAR DISCHARGE)
PARTS CONVEYOR
PARTS CATCHER
FIRETRACE FIRE SUPPRESSION SYSTEM
(6) STRAIGHT LIVE HOLDERS FOR MAIN SPINDLE
(2) STRAIGHT LIVE HOLDERS FOR SUB SPINDLE

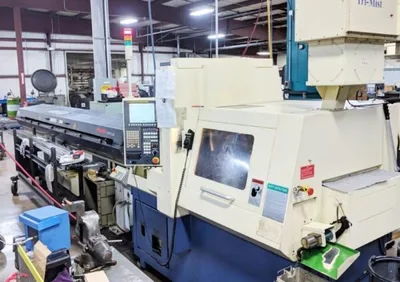

2008 Tsugami SS20 CNC Lathe For Sale
This precision machine offers a machining diameter of 0.75″ and a maximum machining length of 8.66″. It features a maximum drilling diameter of 0.39″, powered by a 5 hp main spindle motor with speeds up to 10,000 RPM, and a back spindle motor also at 5 hp and 10,000 RPM. The lathe has a total tool capacity of 24 positions and live tool speeds up to 5,000 RPM, with 7 controllable axes.
Equipped with a FANUC 31i CNC control, FMB Turbo 3-26 magazine barfeeder (12′), high-pressure coolant system (2,000 PSI, 4-port), and a TRI-MIST mist collector. Additional features include an LNS chip conveyor (rear discharge), parts conveyor, parts catcher, Firetrace fire suppression system, six straight live holders for the main spindle, and two straight live holders for the sub spindle. All specifications are subject to buyer verification.
