Tsugami B0205-II Swiss Lathe – 2014

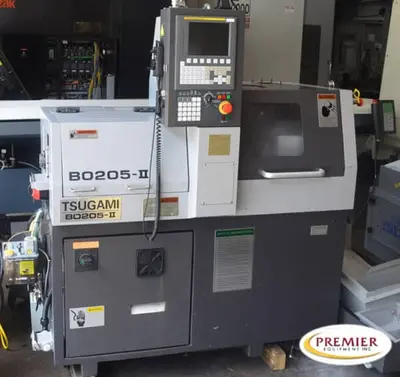

Tsugami B0205-II 5-Axis Swiss Type Lathe / Tsugami B205II

Machining Capacity, Machining Range

Working Barstock Diameter ø3 mm (.12 in.) to ø20 mm (.79 in.)

Max. Machining Length 210 mm (8.26 in.)

45 mm (1.77 in.) (Guide Bushless)

Max. Main Spindle Drilling Diameter ø10 mm (.39 in.)

Max. Main Spindle Tapping Diameter M10

Max. Back Spindle Chucking Diameter ø20 mm (.79 in.)

Max. Back Spindle Drilling Diameter ø8 mm (.31 in.)

Max. Back Spindle Tapping Diameter M8
Machine

Main Spindle Speed 200 to 10,000 min-1

Back Spindle Speed 200 to 12,000 min-1 (10,000 max with ejector rod)

Total Tool Storage Capacity (Standard / Max.: Option) 21

Tool Size .5 in. x .5 in. x 3.35 in.

Rapid Traverse Rate 32 m/min (105 ft/min) [(X1/Y1: 24 m/min (78.74 ft/min)] Y2: 15m/min (49 ft/min)

Controlled axes (linear axes) 5-axis

Rotary Axis Main/Back Spindle Full “C”
Motors

Main Spindle 2.2/3.7 kW (5HP)

Back Spindle 1.5/2.2 kW (3HP)

Axis 0.5 kW (X1,X2,Y1,Z1,Z2) 0.5 kW (X1,X2,Y1,Y2,Z1,Z2)
Others

Net Weight 2,000 kg (4409.25 lbs.) )

Width x Depth x Height 1,655 x 1,125 x 1,700mm (65.16 x 44.29 x 66.93 in.)

Fanuc Series OiTD

Back Spindle

Chip Conveyor

LNS Express 320 Barfeed

MP Systems High pressure pump for oil. Model Type: AT V-2 H08 SD.

Chucker kit

Firetrace Automatic Fire Suppression System (Still charged, no cert tag)
