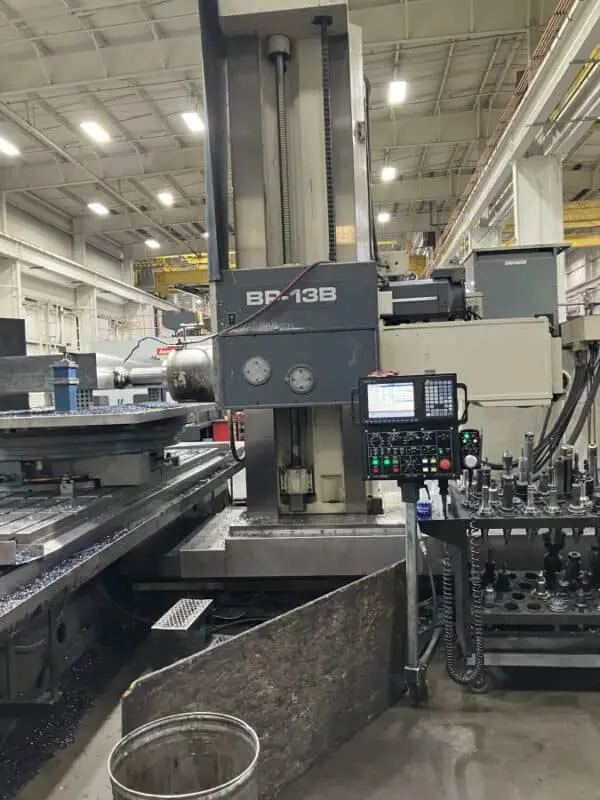

Toshiba BP-13B-P7 HBM

Toshiba BP-13B-P7 PLAIN TABLE TYPE CNC HORIZONTAL BORING MILL

NEW-1993 Control Retrofit Yr 2019
Control……………………………: Mitsubishi 70 Series (Retrofit)

Spindle Diameter……………………: 5.12″

Table Size…………………………: 60″ x 168″

X Travel…………………………..: 157″

Y Travel…………………………..: 92″

Z Travel Column In/Out………………: 60″

W Axis Spindle Travel……………….: 27″

Spindle Speeds……………………..: 2,500 RPM

Spindle Taper………………………: # 50

Max. Table Load…………………….: 44,000 Lbs.

Machine Weight……………………..: 65,000 Lbs.

Mitsubishi 70 Series Control

All new Mitsubishi Spindle Motor & Drives (total retrofit)

Glass Scales X & Y

20gig Hard Drive

High Speed Machining

Telescoping Stainless Steel Way Covers

Toshiba Hardened and Ground Large Flat Ways

New Turcite Just Installed For Table Ways in 2004

Coolant
