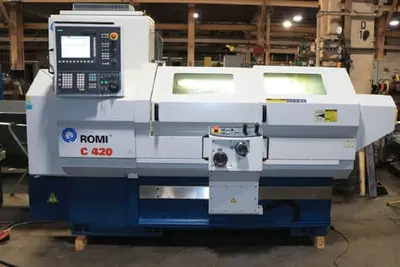

Romi C-420 Combo Lathe – 2010

ROMI C420 Combination Manual & CNC Lathe

DISTANCE BETWEEN CENTERS………………… 43.46″

SWING OVER BED…………………………. 16.92″

SWING OVER CROSS SLIDE………………….. 7.87″

CROSS SLIDE (X) TRAVEL………………….. 8.66″

BED WIDTH……………………………… 12.00″

BED HEIGHT…………………………….. 13.77″

SPINDLE NOSE…………………………… A2-5 ASA

HOLE THROUGH SPINDLE……………………. 2.08″

RANGE OF SPINDLE SPEEDS (INF VARIABLE)……. 4 – 4000 RPM

RAPID TRAVERSE (Z)……………………… 393.70 IPM

RAPID TRAVERSE (X)……………………… 393.70 IPM

TAILSOCK QUILL TRAVEL…………………… 4.72″

QUILL DIAMETER…………………………. 2.36″

QUILL TAPER HOLE……………………….. 4MT

MAIN MOTOR…………………………….. 10 HP

APPROXIMATE FLOOR SPACE ………………… 122″ x 50″

APPROXIMATE WEIGHT …………………….. 5,500 LBS

– SIEMENS 802D CONTROL w/MANUAL GUIDANCE SOFTWARE, TOOL

PATH& 3D PART SHAPE GRAPHICS, TEACH MODE, CONVERSATIONAL

PROGRAMMING, G CODE PROGRAMMING, BUILT-IN DRO

– 10 HP VARIABLE SPEED SPINDLE DRIVE

– TURN PARTS MANUALLY OR AUTOMATICALLY

– DUAL ELECTRONIC HANDWHEEL CONTROLS

– “TEACH” 1ST PART, RUN REMAINING PARTS AUTOMATICALLY

– USB PORT<, FLASH MEMORY CARD SLOT & RS 232 PORT

– 10.4″ COLOR LCD DISPLAY

– 8″ 3-JAW CHUCK

– RIGID TAPPING

– CONSTANT SURFACE SPEED

– INCH/METRIC CONVERSION

– MULTI-START THREADING, THREAD REPAIR

– DORIAN MODEL: CXA QUICK CHANGE TOOLPOST

– BORING BAR HOLDER

– COOLANT SYSTEM

– AUTOMATIC LUBRICATION SYSTEM
