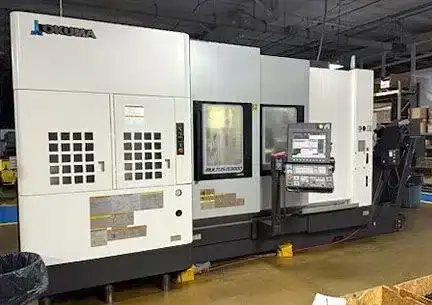

Okuma Multus U3000-2SW/1500 – 2015

OKUMA Multus U3000 2SW/1500
DESCRIPTION:

Maximum Turning Diameter: 25.59″

Maximum Distance Between Centers: 59.05″

Main Spindle Speed Range: 5,000 RPM

Milling Speeds: 12,000 RPM

Spindle Nose: A2-6

X-Axis Travel: 25.39″

Y-Axis Travel: 9.84″

Z-Axis Travel: 62.99″

C-Axis Indexing: 0.001 Degree

B-Axis Indexing: -30 to +210/.001 Min Angle

Spindle Bore: 3.15″

Main Motor: 30 HP/ 20HP

Rapid Traverse (X-Axis): 1,968 IPM

Rapid Traverse (Y-Axis): 1,574 IPM

Rapid Traverse (Z-Axis): 1,968 IPM

Approximate Dimensions: 194″ x 117″ x 118″

Approximate Weight: 35,640 Lbs.

C- Axis on both spindles

Sub Spindle

OSP-P300S-H CNC Control

80 Station Tool Changer

Auto Door with Dual Start

Touchsetter A for 2S

4’ Bar Support System

Y Axis

Chip Conveyor

Chip Blaster High Pressure Coolant

Collision Avoidance Software
