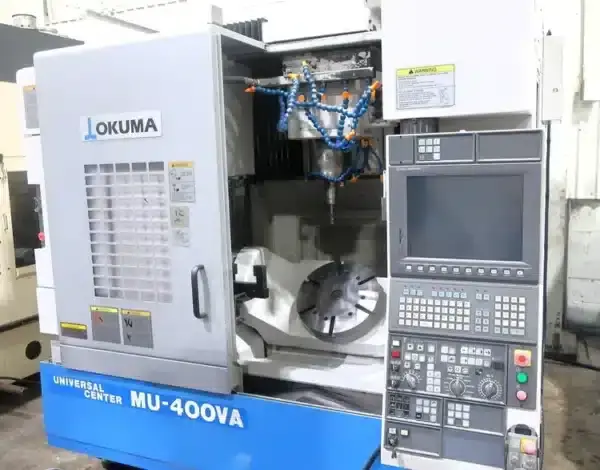

OKUMA MU-400VA 5-Axis – 2007

OKUMA MU400VA 5-Axis CNC Mill

Table Size 15.75″ Dia
Table Load Capacity 660 LBS
# Axis 5
X-Axis (Longitudinal Travel) 30″
Y-Axis (Cross Travel) 18.11″
Z-Axis (Vertical Travel) 18.11″
A-Axis (Trunnion Tilt Range) (±25°) +20° to -110°
C-Axis Table Rotation Positioning 360,000°
Max/Min Clearance Table Top to Spindle Nose 22.05″ / 3.94″
Distance Floor to Table Top 41.34″
Rapid Traverse Rate (X, Y, & Z Axis) 1,574 IPM
Spindle Horsepower 20 HP
Max Spindle Speed 15,000 RPM
Spindle Taper MAS BT40 Big plus
Coolant Thru Spindle yes
Automatic Tool Changer Capacity (ATC) 32
Electrics 220/3/60
Approximate Machine Dimensions 114″ x 160″
Approximate Machine Height 116″
Approximate Machine Weight17,000 LBS

OKUMA OSP P200M-H CNC CONTROL
BUILT IN 4TH AND 5TH AXIS 16″ DIAMETER TRUNION TABLE
15,000 RPM SPINDLE
LASER TOOL SETTER
32 POSITION AUTOMATIC TOOL CHANGER
COOLANT THRU SPINDLE
CHIP CONVEYOR
