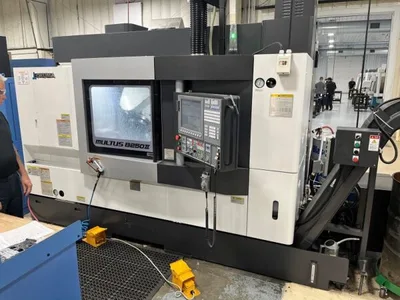

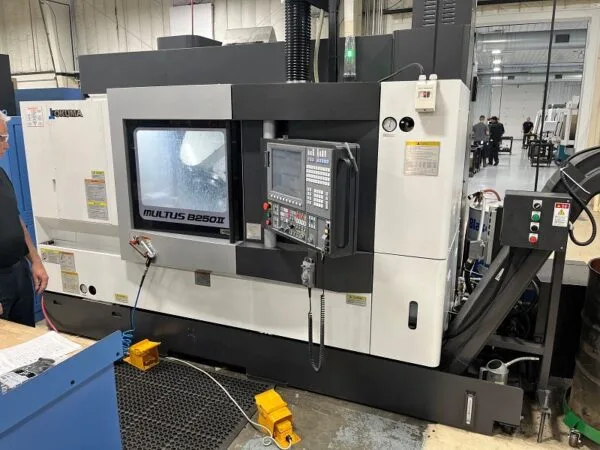

Okuma Multus B250W-II BB x 750 – 2023

OKUMA MULTUS B250II-1SW/750
Product Details:

Spindle Motor 30 / 20 HP

Spindle Speed 5000 RPM

Bar Cap.:  2.59″

Tools 60

Sub Spindle Chuck Size 6″

Sub Spindle Motor 15 / 10 HP

Sub Spindle Nose 140 mm Flat

Sub Spindle Speed 6000 RPM

Rapid Traverse Rates (X & Z / Y / W) 1575 / 1023 / 787 ipm

X-Axis Travel 19.69″

Z-Axis Travel 31.5″

Y-Axis 7.87″

C-Axis Index (Left & Right Spindles) .001 Degrees

Distance Between Spindles 40.55″

H1 Index 0.001 Degrees

H1 Spindle Speed 50 – 12000 RPM

H1 Swivel 225 Degrees

Max Tool Diameter 3.54″ / 5.12″

Max Tool Length 7.87″

Max Tool Weight 8.8 lbs.

Max Turning Diameter 23.62″

W-Axis Travel (Sub Spindle) 31.89″

Features:

• OKUMA OSP-P200SA-H CNC Control

• 12.1″ Color TFT

• USB Port

• H1 Upper Tool Spindle

• Programmable Sub Spindle

• Royal Quick Grip 52 Accu-Length Chuck

• Kitagawa 6” B206 Chuck Right

• Spindle Motor Upgrade 30 HP Left

• 60 Tool Magazine (Capto C6)

• Auto Gauging Renishaw RMP600 RMI-Q Capto C6

• Renishaw Inspection Plus Software with GUI – Lathe

• Y-Axis Gauging with Slope Gauging

• Z-Axis Auto Zero Offset Function Both Spindles

• C-Axis Auto Zero Offset Function Both Spindles

• Touchsetter Manual

• Touch Sensor Gauging Interface Renishaw RMI-Q

• Lathe Tool Index Function Multi Edge

• Chip Conveyor Right Discharge Hinge High 750

• Negative Tool Radius Compensation

• C-Axis Torque Skip Function Both Spindles

• Multi-Tap Transformer

• Remote Jog Handle

• Three Color Tower Light

• B-Axis 0.001 Degrees

• HiG Control

• PFC II
