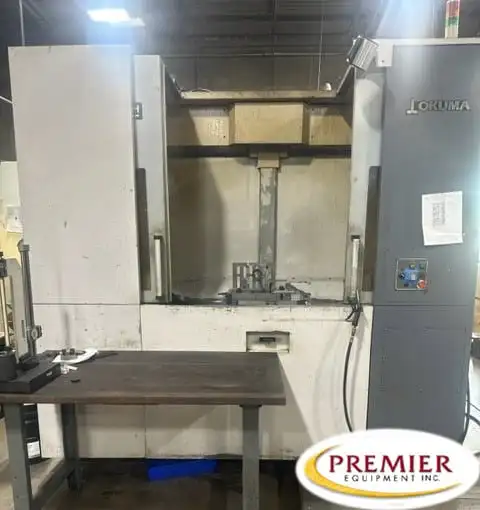

Okuma MB 5000 H CNC Horizontal Machining Center
High-end, high-speed horizontal with full 4-axis, through-spindle coolant, and sophisticated probing that is set up for lights-out production.
With a 15,000 RPM high-speed spindle and sophisticated automation features that optimize uptime and accuracy, this 2011 Okuma MB5000H is a fully functional production powerhouse. This horizontal machining center is set up for unattended operation and produces outstanding results in the manufacturing of high-precision, automotive, and aerospace components. It has a Renishaw OMP60 probe, 1,000 PSI through-spindle coolant, and thorough tool measurement.
Pallet Size19.69” x 19.69”
Max Load1100 lbs
Indexing Angle.001 Degree – Full Rotary Table
Max Workplace Diameter31.5” x 39.37”
X-AXIS : 29.92″
Y-AXIS : 29.92″
Z-AXIS : 29.92″
Spindle Speed 50 – 15,000 RPM
Spindle Drive 30/22 HP
Tool Shank Type CAT40
Magazine Capacity 60 ATC
Okuma OSP-P200MA Control
15,000 RPM Spindle
60 ATC
Full 4th
Renishaw Spindle OMP60 Probe
Tool Measure Length & BTD
MP Systems High Pressure Coolant Unit @ 1000 PSI -Thru Spindle Coolant
Shower Coolant
Mayfran Concept 2000 Chip Conveyor
