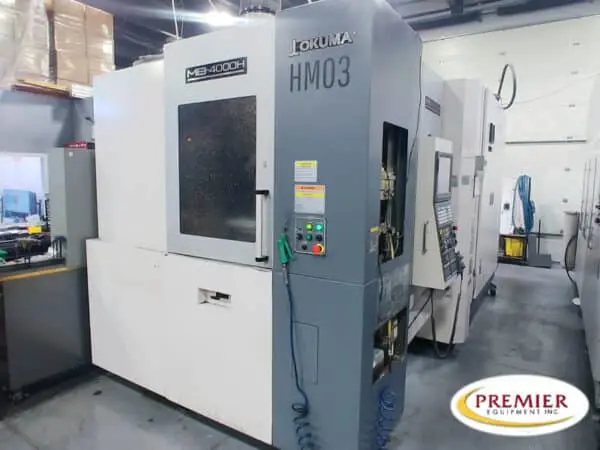

OKUMA MB4000H CNC HMC
Pallet Size 15.75″ x 15.75″
X Axis Travel 22.05″
Y Axis Travel 22.05″
Z Axis Travel 24.61″
Table Index 0.001 degree
Maximum Table Load 880 LBS
Spindle Speed 50 to 15,000 RPM
Spindle Taper # 40
Rapid Traverse Rate (X,Y,Z) 2362.20 IPM
Tool Change Capacity 110 ATC
Spindle Drive Motor 34.7 / 24.67 HP
Approximate Machine Weight 22,000 LBS
OSP 200M CNC Control
MP Systems RF8 1000 PSI High Pressure Coolant
Renishaw Auto Gauging OMP400HA-OM12
Matrix Style 110 ATC
Mayfran Concep 2000 Chip Conveyor
Shower Coolant
Tool Breakage Detection
