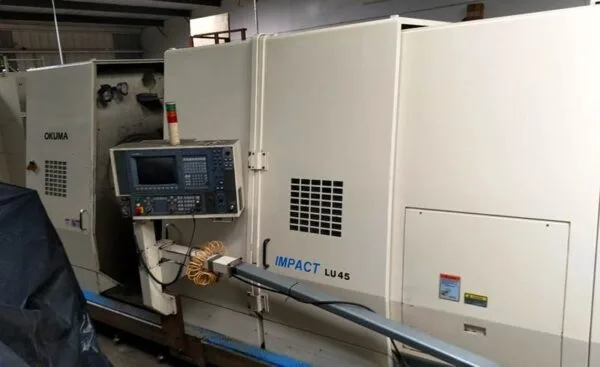

OKUMA LU45M/2000 CNC UNIVERSAL LONG BED 4 AXIS LATHE WITH MILLING
Specs
Swing Over Bed 33.07″
Turning Diameter, Shaft Diameter 25.6″, 21.8″
Machining Length 78.74″
Distance Between Centers 78.74″
Chuck Size 1, 2 24″
Spindle Nose 1, 2 A2 -11
Spindle Bore Diameter 1, 2 5.12″
Spindle Speeds 1, 2 2800 RPM
Gear Ranges 4
Spindle Horsepower 1, 2 60
X – Axis Travel 1, 2 17.32″, 12.01″
Z – Axis Travel 1, 2 82.28″, 79.72″
C – Axis Travel 1, 2 .001 DEGREE
Rapid Traverse Rates X1, X2 591, 591 IPM
Rapid Traverse Rates Z1, Z2 787, 787 IPM
Rapid Traverse C Axis 100 RPM
Turret Configuration 1, 2 12, 10
Turret Rotary Tool Spindle Speed 1, 2 40 – 2000 RPM
Turret Rotary Tool Horse Power 1, 2 10 HP, 2 RANGES
Tailstock Quill Diameter 5.12″
Tailstock Taper MT 5
Tailstock Quill Travel 6.69″
Machine Weight 52,000 LBS
Equipped with
ANIMATION, M-AXIS ORIENT. CHUCK GRASP CONFIRM. CENTER WORK, SIMPLE TOW ALONG
CHIP CONVEYOR FULL COMPLIMENT OF TOOL HOLDERS
HELP, URGENT STOP, MAC MAN IGF CONVERSATIONAL PROGRAMMING
KITAGAWA 24″ 3 JAW HYDRAULIC CHUCK M-AXIS ORIENT
NC TOQUE LIMITER, LAP 4, NOSE-R 2B, USER TASK 2, EXP. AUTO CHAMFER OSP 7000L COLOR CNC CONTROL
PROFILE GENERATION, PLANE CONVERSION, CYCLE TIME CALC. SYNCHRO TAPPING
