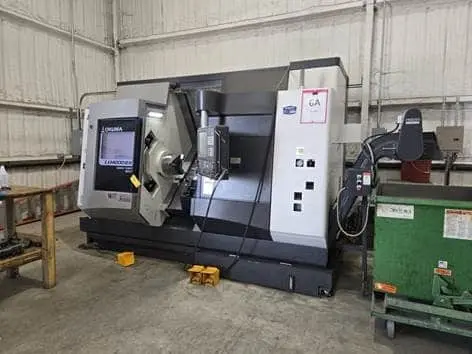

Okuma LU4000EXMY-2SC x 650 – 2022
Overview
Description
2022 Okuma LU 4000 EX – MY 2SC650 CNC Lathe
MFG Date 09/2022
Hours Recorded 3/18/2025
Operating Hours 889
Cutting Hours 857
Spindle Hours 760
LU-4000-EX-MY-2SC/650 WITH OSP P300L CONTROL
Turning:
Max Turning Diameter: Ø650 mm
Max Work Length: 650 mm
Spindle Speed: 45-4200 min-1
Standard Power (20 min/cont): 22/15 kW
Spindle Bore: 3.5"
Turret:
Upper Turret Capacity: 12 Stations
Lower Turret Capacity: 10 Stations
Turret Index Time: 0.2 seconds
Axes:
Rapid Traverse Xa/Za (m/min): (Specific values not provided in search results)
Rapid Traverse Zb/Y (m/min): (Specific values not provided in search results)
Rapid Traverse Xb (m/min): (Specific values not provided in search results)
Tailstock:
Taper: MT 5
Quill Diameter: 3.94"
Quill Travel: 5.91"
Other:
Control: OSP-P300
BB SPINDLE (A2-11) W/F2511 CYL. + D-TUBE F/BR12 CHUCK, LEFT
Y-AXIS OFF-CENTER TURNING FUNCTION
HELICAL CUTTING FOR X-, Y-, Z-AXIS
TAILSTOCK, LIVE QUILL MT #5
TOUCHSETTER MANUAL
CONVEYOR, RIGHT DISCHARGE, HINGE, HIGH, 650 (OCJ)
TEMPERATURE REGULATOR, HYDRAULIC OIL
PREP FOR MIST COLLECTOR, 6”, STD BED LATHE
RAPID TRAVERSE OVERRIDE SWITCH
VARIABLE SPINDLE SPEED THREADING, LEFT (MAIN)
NEGATIVE TOOL RADIUS COMPENSATION
ADV ONE TOUCH ONBOARD PROGRAMMING FOR M/Y/W
ADV ONE TOUCH-PST PROCESSOR FOR M/Y/W
SCHUNK ROTA THW3 315-104 CHUCK, CHUCK ADAPTER, DRAW NUT
