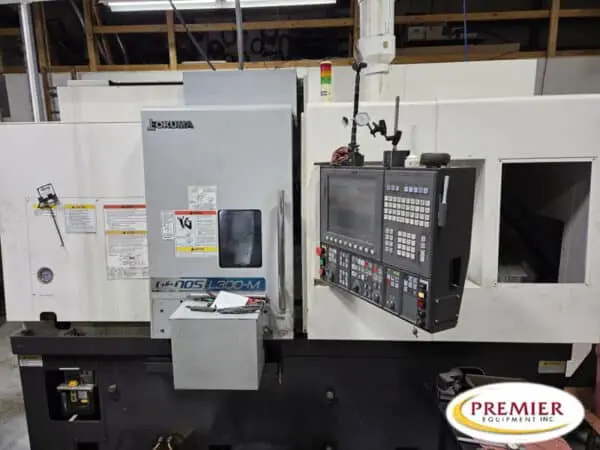

Okuma Genos L300 MYW – 2014

2014 Okuma Genos L300-MYW Multi-Axis CNC Turning Center
This 2014 Okuma Genos L300-MYW is the best machine for multitasking machining. It can turn, mill, and work on the Y-axis at the same time, and it has a sub-spindle for complete part processing in one setup. This machine is great for small to medium-sized production runs where cutting down on cycle time is very important. It has a maximum turning diameter of 11.81 inches and a maximum machining length of 17.7 inches.

Swing Over Bed20.47”
Swing Over Saddle6.69”
Max. Turning Diameter11.81”
Max Mach Length17.7”
X Axis Travel9.25”
Z Axis Travel17.72”
Y Axis Travel3.94” (+1.97” – 1.97”)
W Axis20.47”
C Axis360 Deg (0.001 Deg Increments)
Rapid Traverse Rated 787 / 984 IPM
Spindle Speed25 ~ 3000 RPM
Main Motor (30 Min / Cont)20HP / 15HP
Spindle NoseA2 – 8
Spindle Bore / Bar Capacity3.15″/ 2.6”
Number of Tools12 Position Turret
Sub Spindle Speed / Motor133 – 6000 RPM/ 10 / 7.5 HP
Milling4500 RPM / 5 HP
Machine Dimensions129” x 85” x 87”
Machine Weight13,700 lbs

OSP P300L-R Control
Tool Presetter
Parts Catcher
Chip Conveyor
Y-Axis
Sub-Spindle
