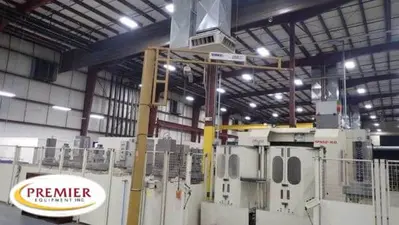

Niigata SPN50-H.0. (4-Machine / 30-Pallet FMS) – 2007
Overview
Description
Niigata SPN50-H.0. (4-Machine) 30-Pallet FMS
CNC Horizontal Machining Center
Specifications
Pallet Size: 19.7″ x 19.7″
Indexing: 1 Degree
X-Axis Travel: 31.5″
Y-Axis Travel: 29.5″
Z-Axis Travel: 29.5″
Taper: #50
Spindle Speed: 15,000 RPM
Rapids: 2,362 IPM
ATC Stations: 126-Position Automatic Tool Changer
Equipped With
Fanuc Series 16i-MB CNC Control
Chip Conveyor
Transformer
4th Axis (360 Positons Rotary Tabale with 4-Axis Simultaneous)
Coolant Thru Spindle
Chip Blaster Model JV10 1000 PSI System, 3 to 10 GPM
Auto Crossover
Overhead Coolant
UpCharge Drag-Conveyor with Wesh Covered Rotary Drum
Niigata Monitoring Includes Load Watch Option
Control Option Opt8ional Block Skip; Tool Offset 200, Macro 600 Variables
Program Restart
Automatic Corner
Part Storage 1.0 MB
Inverse Time Feed
Optional Block Skip
High Speed Serial Bus Interface
High SPPED Skip
FMS Preparation
Niigata 30 Position Pallet Farm / Automatic Pallet Changer with (30) Pallets
with (30) 20″ x 20″ Pallets; (4) Setup Stations; and Pallet Transfer Cart
