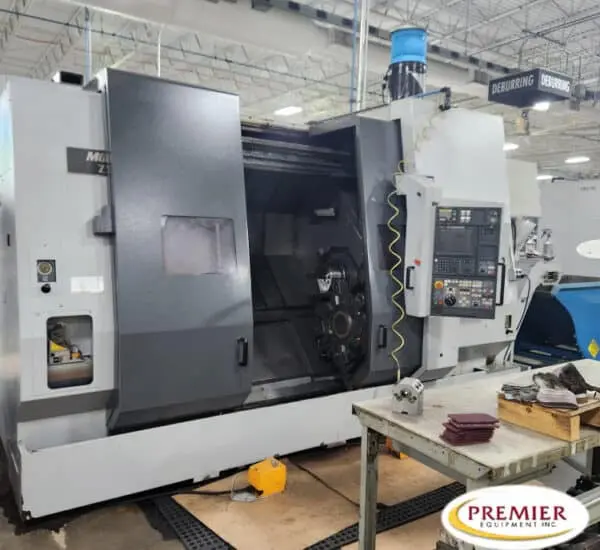

Mori Seiki ZT-2500 – 2002

Max. Swing of Workpiece 14.9”
Max. Distance Between Spindle Large Noses 51.2”
Max. Turning Diameter No. 1: 14.9” / No.2: 11.8”
Standard Turning Diameter 10.2”
Max. Turning Length 13.7”
Bar Work Capacity 2.8”
X-Axis Travel No. 1: 11.0” / No. 2: 7.9”
Z-Axis Travel 37.8”
Headstock 2 Travel 20.7”
Spindle Speed Range No. 1 & No. 2:  40 – 4000 RPM
Type of Spindle Nose No. 1 & No. 2: A2-8
Through Spindle Hole Diameter No. 1 & No. 2: 3.5”
Number of Tool Stations No. 1 & No. 2: 12 each
Rapid Traverse Rate X1,X2: 944 IPM / Z1,Z2: 944 IPM / B: 944 IPM
Jog Feedrate 0 – 197 IPM
Spindle Drive Motor (30 min / cont) 30/20 HP
Floor Space 165” x 109” x 109” (chip conv. not included)
Mass of Machine 28,600 lbs
