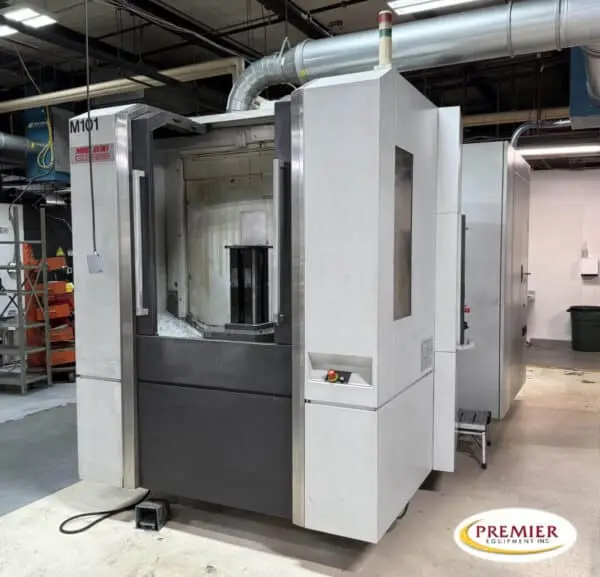

Mori Seiki NH-5000/40DCG – 2006

Mori Seiki NH5000/40DCG

CNC Horizontal Machining Center

PALLET SIZE: 19.7″ X 19.7″

TRAVELS:

–X: 28.70″

–Y: 28.70″

–Z: 33.50″

DISTANCE FROM SPINDLE CENTER TO TOP OF PALLET: 3.90″ – 32.70″

DISTANCE FROM SPINDLE NOSE TO PALLET CENTER: 3.90″ – 32.70″

MAXIMUM TABLE LOAD: 1100 LBS.

MAXIMUM WORKPIECE HEIGHT: 39.30″

MAXIMUM WORKPIECE DIAMETER: 31.4″

SPINDLE NOSE:CAT 40

SPINDLE SPEED: 14,000 RPM

SPINDLE HORSEPOWER: 30HP

MAGAZINE CAPACITY: 60

TOOL-TO-TOOL TIME: .9 SECONDS

MAX.TOOL DIA.W/ADJACENT POCKETS EMPTY: 5.50″

MAXIMUM TOOL LENGTH: 19.60″

MAXIMUM TOOL WEIGHT: 26.40 LBS.

RAPID TRAVERSE RATE: 1,968 IPM

MAXIMUM PROGRAMMABLE FEED RATE: 1,968 IPM

MACHINE WEIGHT: 28,380 LBS.

MSX-701 III

1 Degree Indexing

Chip Conveyor

Pallet Changer
