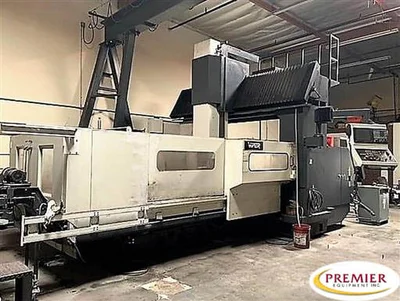

MIGHTY VIPER DZ3240 CNC Double Column Vertical Machining Center
X-AXIS, TABLE TRAVEL 120.08″
Y-AXIS, SPINDLE HEAD TRAVEL 94.49″
Z-AXIS, VERTICAL TRAVEL 42.13″
DISTANCE BETWEEN COLUMNS 98.82″
DISTANCE SPINDLE NOSE TO TABLE 15.35″-57.48″
TABLE SIZE 125.98″ X 80.31″
TABLE CAPACITY 24,250 LBS.
SPINDLE TAPER CAT #50
MAXIMUM SPINDLE SPEED 6000 RPM
SPINDLE MOTOR 30 HP
CUTTING FEED RATE 0.34-196.8 IPM
RAPID TRAVERSE (X,Y,Z0 393 IPM
MITSUBISHI M730 CNC CONTROL
40 STATION AUTOMATIC TOOL CHANGER
PLUMBED FOR COOLANT THRU SPINDLE
AUTO LUBRICATION SYSTEM
WORK LIGHT
SPINDLE OIL COOLER
COOLANT SYSTEM
(4) CHIP CONVEYORS
HOURS:
POWER ON: 15,885
