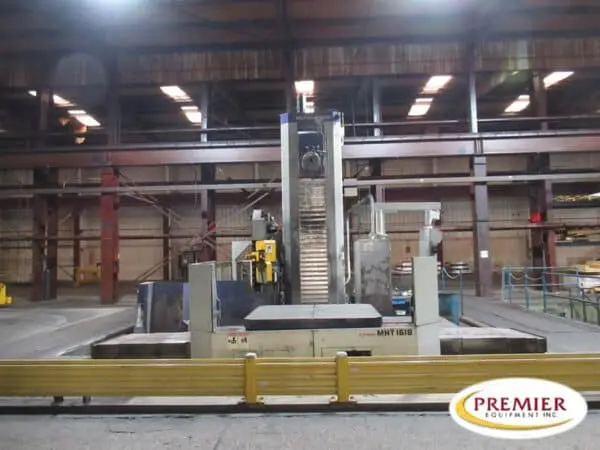

MITSUBISHI M-HT 13/1618 CNC HBM – 2008

MITSUBISHI MHT 13/1618 CNC HORIZONTAL BORING MILL

Specs

Table Size 63.1″ X 71″

Table Load Capacity 17,600 LBS.

Spindle Diameter 5.1″

X – Axis Travel 118″

Y – Axis Travel 98.4″

Z – Axis Travel 51″

W – Axis Travel 19″

B – Axis Indexing .001 DEGREE

Rapid Traverse X, Y, Z, W 472,472,472, 236 IPM0

Spindle Speed 4000 RPM

Spindle Taper 50

Main Motor 50 HP

Automatic Tool Changer 80 ATC

Tool Diameter 6″, 9.4″

Tool Length 19.7″

Tool Weight 66 LBS

Machine Weight 72,000 LBS

Equipped with

200 TOTAL PAIRS OF TOOL OFFSETS 48 PAIRS OF ADDITIONAL WORKPIECE CO-ORDINATE SYSTEM

CHIP CONVEYOR COOLANT THRU THE SPINDLE

EASY CENTERING FUNCTION FANUC 18IM CNC CONTROL

FULL WAY COVERS G-COMMAND MIRROR IMAGE: G50.1, G51.1

MP SCALES FOR X, Y, Z AND B AXES PARAMETER CO-ORDINATE SYSTEM ROTATION: G68,G69

PROGRAMMABLE PARAMTER INPUT RENISHAW PROBE

SKIP FUNCTION G31 SPINDLE HEAD COOLING UNIT

SYNCHRONOUS TAPPING
