Milltronics ML18/60 – 2010

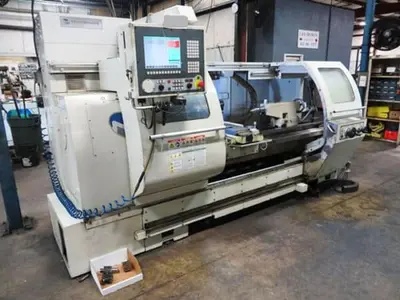

Milltronics ML18/60 CNC Combination Lathe

With a generous swing of 19,” length of 60″ and a 2.56″ spindle bore, the ML18/60 is our most
popular tool room lathe. Featuring a 24 HP, 2,600 RPM spindle it produces 255 ft-lbs. of
torque. Standard with an 8 station electro-mechanical turret.

19″ Swing
12″ X Axis
63.5″ Z Axis
8 Tool Changer Automatic Turret
27.9″ Swing Over Gap
12.75 Gap Distance
D1-6 Spindle Nose
2.56″ Spindle Bore
100-2600 RPM Spindle Range
24/15 HP (18/11 kW) AC Spindle Motor
255 ft-lbs (345 N.m Spindle Torque
220V 3 Phase 50/60Hz
MILLTRONICS 7200 CNC CONTROL
Card Reader
10″ 6-JAW CHUCK
TAILSTOCK
