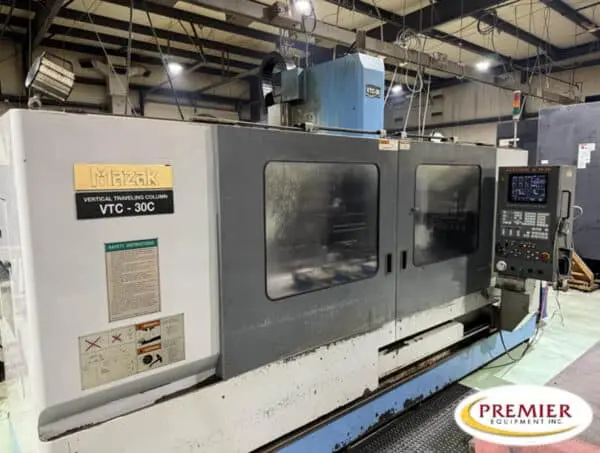

Mazak VTC-30C with Rotary Table – 1998

Mazak VTC30C CNC Mill with Rotary Table

Table Size: 78.74″ x 29.92″
Table Load Capacity: 3000 lbs
X Axis Travel: 65.35″
Y Axis Travel: 29.92″
Z Axis Travel: 26.00″
Distance Spindle Nose to Table Top: 5.8” – 31.8”
Magazine Capacity: 24 ATC
Rapid Traverse Rates X,Y: / Z787 IPM / 590 IPM
Spindle Nose: #40
Spindle Speed: 8,000 RPM
Main Motor: 15 HP
Machine Dimensions: 170” x 133” x 112”
Machine Weight: 18,600 lbs estim.

Mazatrol M-Plus CNC Control

Helical Spiral Interpolation
Additional EIA/ISO Functions

Spare Tool Selection
Background Tool Path Check

Synchronized / Rigid Tapping
Adaptive Feedrate Control

Helical  Interpolation
Tool Breakage Recovery

Tool Life Management
Auto Tool Length Measurement

Troyke 20″ Rotary Table
Chip Conveyor
