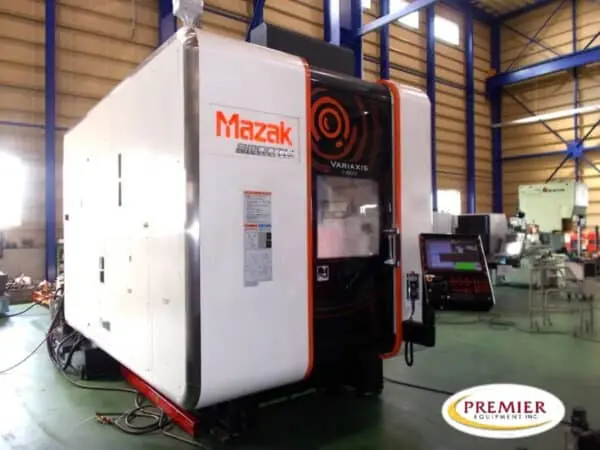

Mazak Variaxis i600 – 2018k

Mazak Variaxis i-600 5-Axis CNC Vertical Machining Center

Max. workpiece size 27.56” Dia x 17.72” Height
X-axis travel (Saddle’s longitudinal movement) 20.08”
Y-axis travel (Column’s transverse movement) 35.83”
Z-axis travel (Spindle head’s vertical movement) 20.08”
A-axis travel (Table tilting)[Indexing in units of 0.0001Deg) –120° to +30° (axis control)
C-axis travel (Table rotation)[Indexing in units of 0.0001Deg) ±360°(axis control)
Distance between spindle nose and top of the table 2.76” to 22.83”
(positioned horizontally)
Distance between spindle nose and center of the table 0.79” to 20.87”
(positioned vertically)
Max. load on the table (uniformly distributed load) 1102 lbs
Spindle tapered bore  7/24 taper No. 40

12,000 RPM
Spindle speed min1 35 to 12000 RPM
Motor output 30 / 20 HP

Tool shank type : Big Plus BT40

Mazatrol Smooth X CNC Control
Auto Tool Length Measurement and Breakage Detection
Mazak Monitoring System B Renishaw Probe
Relocation Device
Chip Conveyor
