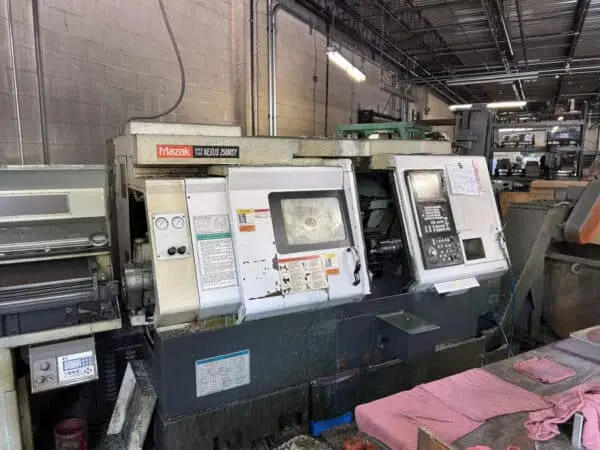

Mazak Nexus 250MSY-II – 2006

MAZAK QUICK TURN NEXUS 250-II MSY / QTN250MSY / QTN-250MSY

 Specifications

Maximum Swing…………………………26.5″
  Standard Machining Diameter…………….10.87″
  Maximum Machining Diameter……………..14.75″
  Maximum Turning Distance                   21.27″
  Spindle Motor…………………………35 HP
  Standard Bar Capacity………………….3.0″
  Spindle Speed…………………………4,000 RPM
  Spindle Nose………………………….A2-8
  Spindle Bore………………………….3.46″
  Second Spindle Maximum RPM……………..6,000
  Number of Tools……………………….12
  Mill Spindle Maximum RPM…………….4500 RPM
  X-Axis Travel…………………………9.0″
  Z-Axis Travel…………………………22.63″
  Y-Axis Travel…………………………4″

Mazatrol Matrix Nexus Control
