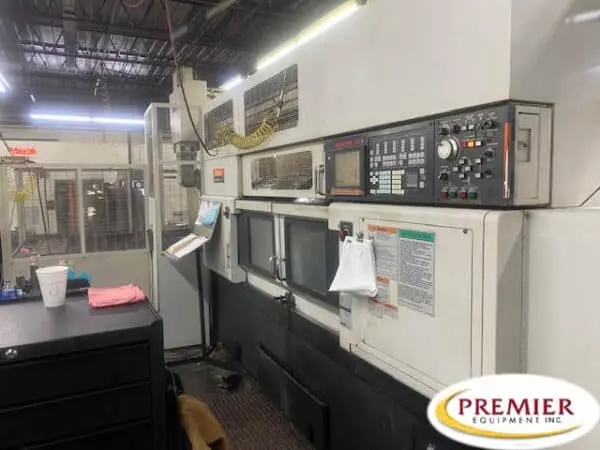

Mazak Multiplex 6300 with Gantry – 2010

Mazak Multiplex 6300 with GL-200F Gantry Robot Twin Spindle, Twin Turret CNC Turning Center with Milling

Maximum Swing…………………………………… 16.93″
Standard Cutting Diameter……………………… 13.0″
Maximum Cutting Diameter……………………… 16.93″
Maximum Cutting Length Chuckwork…………… 8.86″
Maximum Cutting Length Shaftwork…………… 25.59″

MAIN SPINDLE (L&R)
Distance Between Spindle Faces:
     Max.(Both Heads @ Home Position)……… 57.09″
     Min……………………………………………… 9.82″
Spindle Nose………………………………………. A2-8
Spindle Bore……………………………………….. 3.46″
Maximum Bar Diameter…………………………… 3.0″
Spindle Speed/Ranges……………………………. 4,000 RPM/1
Spindle Indexing (C-Axis)………………………… .001 deg./360,000 Positions
Spindle Horsepower (30 min.)……………………. 30 HP (AC)
Spindle Torque……………………………………… 441.34 ft.-lbs.

TURRET (L&R)
Type of Turrets……………………………………. Dodecagonal/Drum Non-Lift
Tool Holder Shanks……………………………….. Modified VDI
Turret Index Time (1 Step)……………………… 0.3 Sec.
Total Number of Tools:
     (Rotary Avail./All Positions)……………….. 24 (12×2)
Tool Size:
     Turning & Facing………………………………. 1″ x 1″
     Boring Bar Maximum Diameter……………… 2″

MILL SPINDLE (L&R)
Spindle Speed………………………………………. 4,000 RPM
Spindle Horsepower (10 Min)…………………….. 10 HP (A.C.)
Maximum Drill………………………………………. 7/8″
Maximum End Mill………………………………….. 13/16″
Maximum Tap……………………………………….. 8- 5/8 UNC

AXIS
Travel:
     X-Axis (L&R)…………………………………… 12.2″
     Z-Axis (L&R)…………………………………… 23.82″

Mazatrol PC-Fusion 640T CNC Control
Main Spindle Motor 30 HP L&R
Spindle Speed 4000 RPM L&R
C-Axis 0.001 Degree Incr. L&R
12 Position Drum Turret (VDI Strt. Shank)
Rotary-Tool Spindle Speed 4000 RPM L&R / 57.88 ft-lbs
Automatic Tool eye L&R
Milling Spindle Synchronous Tapping L&R
Relocation Device
Chuck Air Blast L&R
Chip Conveyor Rear Disposal (Hinge Type)
GL200F/Pitch-Feed Type 3/
12” chucks on both spindles
