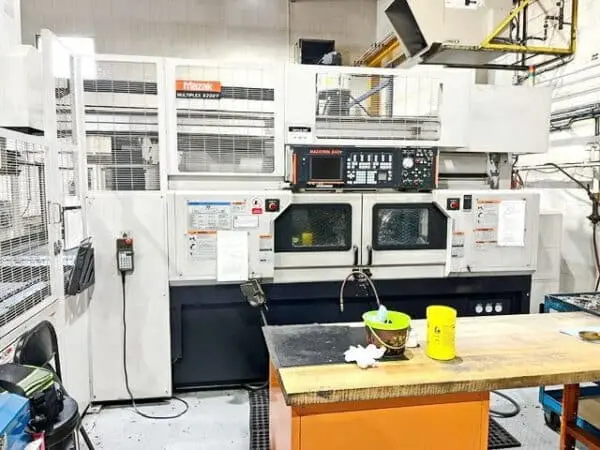

Mazak Multiplex 6200YB with Gantry – 2010

MAZAK MULTIPLEX 6200YB with Gantry

MAX SWING 12.5″

TURNING DIA 10.24″

MACHINING LENGTH (SHAFT WORK) 21″

MACHINING LENGTH (CHUCK WORK) 7″

# AXIS 8

CHUCK SIZE (MAIN) 10″

CHUCK SIZE (SUB) 10″

THROUGH SPINDLE HOLE (MAIN) 2.95″

THROUGH SPINDLE HOLE (SUB) 2.95″

POWER (MAIN) 30 hp

POWER (SUB) 30 hp

MAX RPM (MAIN) 5,000 RPM

MAX RPM (SUB) 5,000 RPM

MAX RPM (MILLING TOOL) 4,500 RPM

X1/X2-AXIS TRAVEL 9.45″

Z1/Z2-AXIS TRAVEL 17.32″

SPINDLE NOSE (MAIN) A2-6

SPINDLE NOSE (SUB) A2-6

TAILSTOCK No

LIVE TOOLING Yes

SUB SPINDLE Yes

TURRET CAPACITY 2 X 12

MADE IN Japan

CONTROL CNC (Mazatrol 640T)

DIMENSIONS 140.55″ X 78.54″ X 82.28″

WEIGHT 15,840

Fusion 640T

High-pressure coolant system (213 psi)

Twin spindles (5000 rpm)

(2) 10″ thru-hole Kitagawa power chucks

Dual-turrets (12 tools)

4500 rpm rotary tools (both turrets)

Gantry loading system (12-pallets)

Y-axis

C-axis

Automatic tool eye (L/R)

Overload detection

Turret air blast
