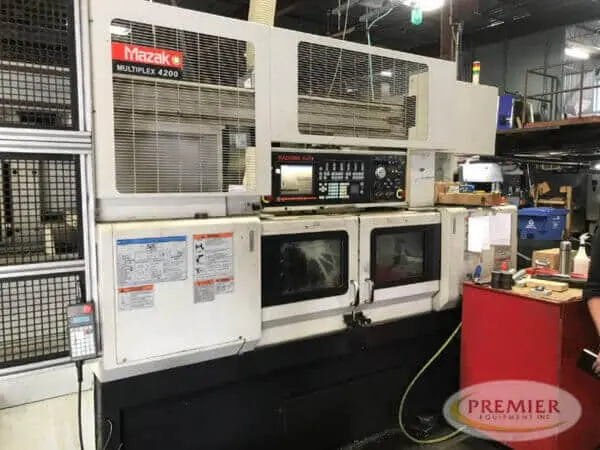

Mazak Multiplex 4200 with Gantry – 2004

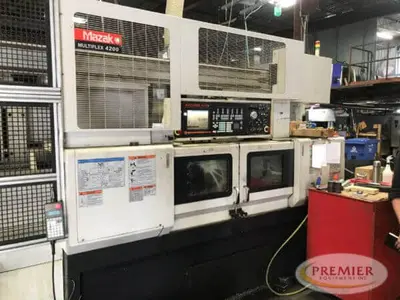

Mazak Multiplex 4200 with Gantry

CNC Turning Center

Maximum Swing ……………………….. 12.5″

Standard Cutting Diameter……………… 10.24″

Maximum Bar Diameter………………….. 2.0″

Maximum Machining Length For Chuckwork….. 7.0″

Maximum Machining Length For Shaftwork….. 21.0″
MAIN SPINDLE (L&R)

Distance Between Spindle Faces:

Max.(Both Heads @ Home Position)…… 46.85″

Min…………………………….. 10.15″

Spindle Nose………………………… A2-6″

Spindle Bore………………………… 2.4″

Spindle Speed/Ranges…………………. 35-5,000 RPM/1

Spindle Horsepower (Cont/30 Mins)………. 20/30 HP (A.C.)

Spindle Torque……………………….. 258.2 ft.-lbs.
TURRET (L&R)

Type of Turrets………………………. Dodecagonal/Drum

Non-Lift

Tool Holder Shanks……………………. Modified VDI

Turret Index Time (1 Step)…………….. 0.2 sec.

Total Number of Tools…………………. 24 (12×2)

Tool Size (Turning & Facing)…………… 1″ x 1″

Tool Size (Boring Bar Max. Dia.)……….. 1-1/2″
AXIS

Travel X-Axis (L&R)…………………… 9.06″

Travel Z-Axis (L)…………………….. 17.25″

(R)…………………….. 19.37″

Rapid Traverse: X-Axis……………….. 1200 IPM

Z-Axis……………….. 1300 IPM
MACHINE

Machine Floor Space (W x L)

W/O Automation or Bar Feeder, etc…… 81.54″ x 140.6″

Machine Height……………………….. 82.3″

Total Power Required (Machine Only)…….. 77.4 KVA

Air Requirements……………………… 71 PSI / 14 CFM

Total Weight (For Machine only)………… 16,060 lbs.

Mazatrol Fusion 640T Control

EIA/ISO Option Package

PCMCIA Interface (2-Slot)

Network Interface (For LAN & Modem)

Main Spindle Motor 30 HP L&R

Spindle Speed 5000 RPM L&R

Automatic Tool Eye L&R

High Power Coolant 105 PSI / 5.3 GPM x 2

GL100F Robot

Prep Only for Work Measuring System LP2 Optical

Jorgensen Magnetic Slider Bed Conveyor
