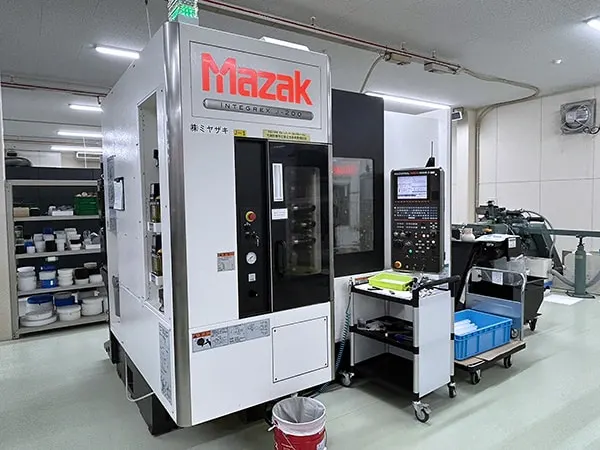

MAZAK INTEGREX J200 5-Axis Plus Machining Center
SPECIFICATIONS
MAX TURNING DIAMETER 19.69″
MAXIMUM CUTTING LENGTH 19.69″
X-AXIS TRAVEL 17.72″
Z-AXIS TRAVEL 21.65″
Y-AXIS TRAVEL 7.87″
C-AXIS INDEXING 0.001 deg
MAIN SPINDLE BORE DIAMETER 3″
MAIN SPINDLE MAXIMUM BAR WORK 2.5″
MAIN SPINDLE SPEED 5,000 RPM
MAIN SPINDLE HORSEPOWER 15HP
ATC MAGAZINE CAPACITY 36
B AXIS ROTARY TOOL SPINDLE SPEED 12000 rpm
B-AXIS ROTARY TOOL SPINDLE HORSEPOWER 10 hp
B-AXIS INDEXING 1 degree
PARTS CATCHER Yes
CHIP CONVEYOR Yes
MILLING SPINDLE SYNCHRONOUS TAPPING Yes
TOOL EYE AUTOMATIC FRONT SPINDLE Yes
COOLANT THRU MILLING HEAD Yes
MULTI TAP TRANSFORMER Yes
CONTROL CNC (MAZATROL MATRIX)
WEIGHT 13,530 LBS
OPTIONS / EQUIPPED WITH
HYDRAULIC CHUCKS
COOLANT THRU MILLING SPINDLE
COOLANT SYSTEM
INTELLIGENT THERMAL SHIELD
NC TAIL STOCK
CAPTO ATC 36
TOOL EYE
MIST COLLECTOR
CHIP CONVEYOR
KITAGAWA CHUCK B210A615A (MAXIMUM RPM 4200)
TOUCH PROBE
SPINDLE CHILLER
