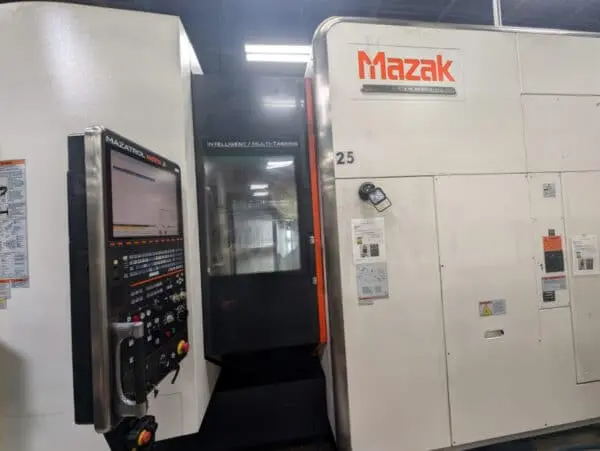

Mazak Integrex i-500V (2-Pallet) – 2012

Mazak Integrex I500v (2-Pallet)

Maximum Cutting Diameter 28.74″

Main Spindle HP 40 HP

Main Spindle RPM 1000 RPM

Spindle Taper Capto C6

Milling Spindle HP 30 HP

Milling Spindle RPM 12,000 RPM

Number of Tool Stations 40

X Axis Travel 43.31″

Y Axis Travel 31.50″

Z Axis Travel 35.43″

B Axis Travel 150°

C Axis Positioning 0.0001 Degree Incr.

Mazatrol Matrix 2

Coolant Thru Mil-Spindle Sys 8kg(115psi)

Mazak Super Flow T8 High Pressure Coolant 1000psi/8gpm

Spindle Chiller Unit

Niagara Coolant

Work Measuring System RMP 600

Manual Rotation of 2pc Loading Station

2 Pallet Changer

610mm Diameter Location Bore Tap Pallet (x2)

Tool Eye

Overload Detection System

Mayfran Magsep Conveyor
