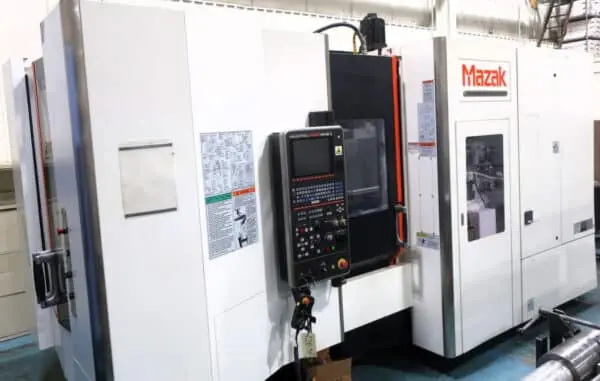

Mazak HCN-4000III – 2016

MAZAK HCN4000-III / Nexus 4000

X 22.05″

Y 24.8″

Z 25.2″

POWER 47 hp

RPM 18,000 RPM

Taper BT40

PALLET-W 15.75″

PALLET-L 15.75″

Stroke:

X Axis stroke (column travel right/left) 22.0″

Y Axis stroke spindle head travel up/down 25.2″

Z Axis stroke (pallet forward/backward) 25.2″

Distance from pallet center to spindle nose 2.8″-28.0″

Table indexing time 1.3 sec each 90 deg

Spindle:

Max. Spindle speed 18,000 RPM

Spindle bearing size 70mm

Feedrate:

Rapid traverse rate (X,Y,Z Axes) limited w/cont. axis mov. 2,362 IPM

Axis acceleration/deceleration 1G

Automatic Tool Changer:

Tool storage capacity 60 Tools

Max. Tool diameter/length (from gauge line)/weight 6.7″

Tool selection method (Random selection @) Shortest path

Tool change time (chip to chip) 2.4 sec.

Motors:

Spindle motor 25/23 HP

Flood coolant pump motor 50/60 HZ

Machine size 87″x207″x106.8″H

Machine weight 23,584 lbs

MOTOR SPECIFIFCATIONS:

25 HP Main Spindle Drive Motor

Mazatrol Matrix Nexus 2 CNC Control

Auto Tool length measure. & Break Detector

Manual pulse generator (wired/detachable)

Hi-Press Coolant thru sys (15KG (213 PSI))

Chip Conveyor , (CONSEP-1) N/A6PC

B)Synchronized Tapping & B) Cylindrical Interpolation (RQR.NCRT)

Signal Tower (3 Colors lights, Square),

60 Tool Drum magazine (Random Memory) / BT40

Spindle Speed 18,000 RPM (Random memory)

NC Rotary Table (360,000 Positions)
