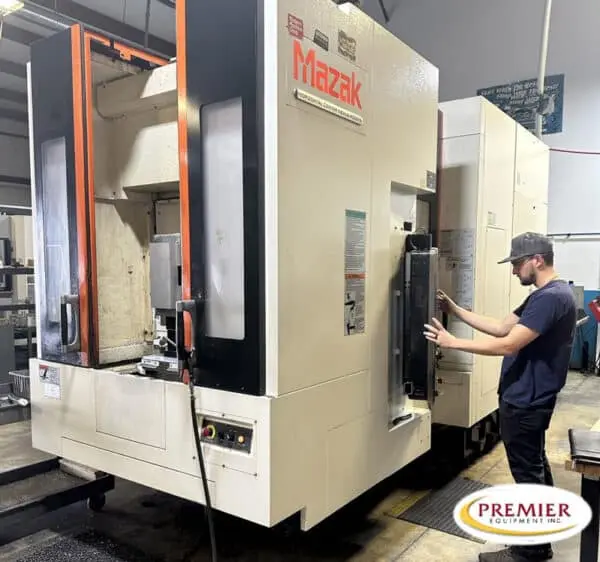

Mazak HCN-4000-II – 2011

Mazak HCN4000II / Nexus 4000 CNC Horizontal Machining Center

Mazak HCN-4000-II
CNC Horizontal Machining Center
Specifications (subject to buyer verification):
Pallet Size / No. of Pallets15.75” x 15.75” / 2 Pallets
Pallet Change Time 7 seconds
Table Indexing 1 Degree Indexing
Spindle Speed:  18,000 RPM
Max Workpiece Dia x Height 24.8” x 35.43”
Distance from Spindle Nose to Center of Pallet 2.76 – 27.95”
Distance from Center of Spindle to Top of Pallet 3.15 – 28.35”
Table Load Capacity 881 lbs.
X Axis Travel 22.05″
Y Axis Travel 25.20″
Z Axis Travel 25.20″
Magazine Capacity 120 Position ATC
Spindle Taper40
Rapid Traverse (X, Y, Z) 2362 IPM

Mazatrol Matrix Nexus CNC Control
Concept Chip Conveyor
1000 psi coolant thru spindle (Variable)
Renishaw Part probe
Auto Tool Length Measure System
120 Tool Magazine
1 degree table
