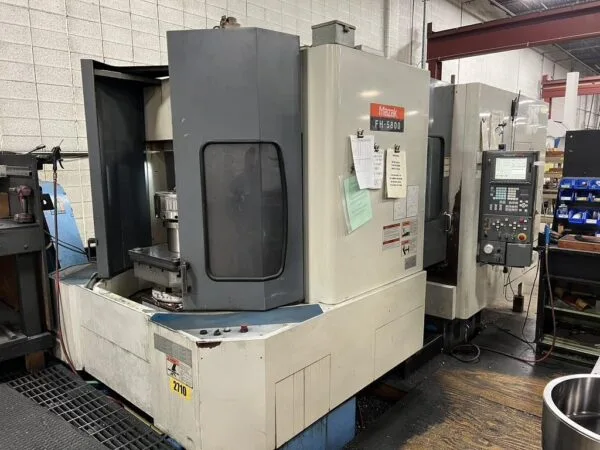

Mazak FH-5800 – 1998

MAZAK FH5800 Machining Centers, Horizontal
GENERAL

PALLET SIZE…………………… 19.7″ x 19.7″

NUMBER OF PALLETS……………… 2

MAXIMUM TABLE LOAD…………….. 2,205 LBS

X AXIS TRAVEL…………………. 28″

Y AXIS TRAVEL…………………. 24″

Z AXIS TRAVEL…………………. 26″

B AXIS INDEXING……………….. 360,000 POSITIONS

RAPID TRAVERSE RATE X,Y,& Z AXIS… 945 IPM

CUTTING FEED RATE X,Y, & Z …….. 315 IPM

SPINDLE SPEEDS………………… 12,000 RPM

SPINDLE TAPER…………………. CAT 40

SPINDLE MOTOR (2 SPEED GEARED)….. 30 HP

TOOL CHANGER CAPACITY………….. 80 STATION ATC

MAXIMUM TOOL WEIGHT……………. 44 LBS

MACHINE WEIGHT………………… 25,700 LBS

MAZATROL FUSION 640M CONVERSATIONAL CNC CONTROL

RS-232C PORT INTERFACE

RIGID TAPPING

SPINDLE AIR BLAST

TOOL PROBE

FLOOD AND THRU SPINDLE COOLANT

COOLANT THROUGH THE SPINDLE

EXTERNAL LIFT-UP TYPE CHIP CONVEYOR

FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
