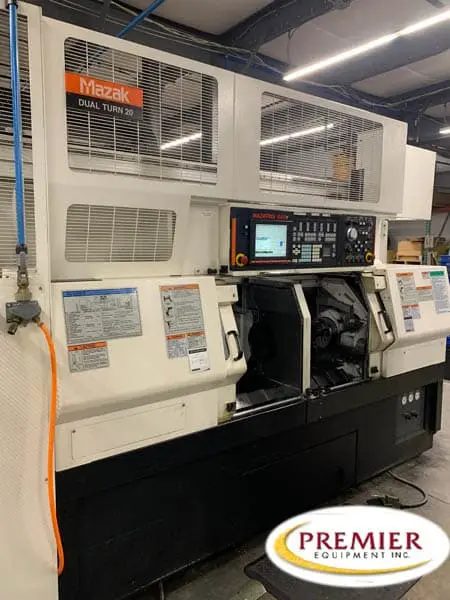

Mazak Dual Turn 20 with Gantry – 2012

Mazak DualTurn 20 Twin Spindle, Twin Turret CNC Turning Center

Maximum Swing…………………………………… 12.6″
Standard Cutting Diameter……………………… 10″
Maximum Cutting Length for Chuckwork………. 5.91″

MAIN SPINDLE (L&R)
Distance Between Spindle Faces:
     Max. (Both Heads @ Home Position)……. 49.21″
Spindle Nose……………………………………… A2-6
Spindle Bore………………………………………. 2.4″
Spindle Speed/Ranges………………………….. 35-4750 RPM/1
Spindle Horsepower (Cont/30 Mins)………….. 15/20 A.C.

TURRETS (L&R)
Type of Turrets………………………………….. Dodecagonal/Drum Non-Lift
Total No. of Tools………………………………… 24 (12 X 2)

AXIS
Travel:
     X-Axis (L&R)…………………………………… 9.06″
     Z-Axis (L&R)…………………………………… 19.69″

MAZATROL PC-FUSION-CNC 640T CONTROL
Automatic Tool Eye L&R
Relocation Device
GL100F Gantry Robot / Pitch-Feed Type
Rear Chip Conveyor
(2) 8” Non Thru-Hole Chucks L&R
All Tooling and Manuals
