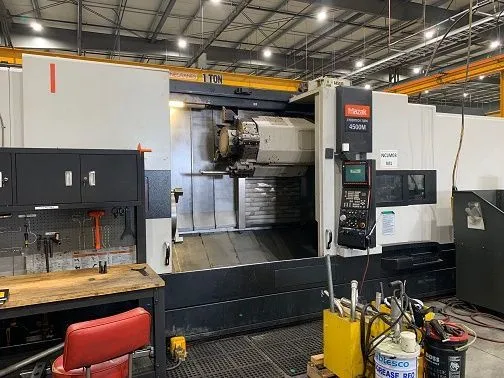

Mazak Cybertech Turn 4500M – 2007

MAZAK CYBERTECH TURN 4500M

Max. Swing Over Bed: 33.86″

Max. Swing Over Cross Slide Upper/Lower: 27.5″

Max. Machining Diameter: 31.89″

Max. Machining Length Upper/Lower: 120″

X-Axis Travel: 21.26”

Z-Axis Travel: 120″

C-Axis Incremental Movement: 0.001 Degree

Spindle Bore/Bar: 7″

Main Spindle Motor: 50 HP

Rotary Tool Speed: 3,000 RPM

Rotary Tool Motor: 15 HP

Number of Turret Positions: 12 Positions, All Live

Rapid Traverse X: 945 IPM

Rapid Traverse Z: 1,181 IPM

Tailstock Taper: MT# 5

Machine Weight: 40,000 lbs

# AXIS 3

BAR CAPACITY 6.5″

TAILSTOCK Yes

LIVE TOOLING Yes

Fusion 640

Hydraulic Chuck

Hydraulic Steady Rest

Live Tooling
