MATSUURA MAM72-63V 5-Axis – 2007

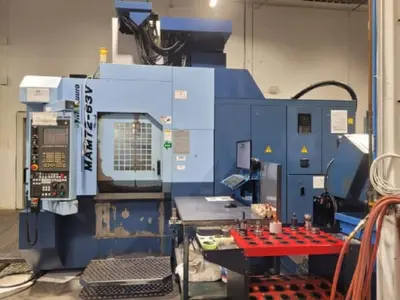

Matsuura MAM 7263V 5-axis Vertical Machining Center

X Axis Travel…………… 29.92″

Y Axis Travel…………… 33.26″

Z Axis Travel…………… 25.98″

A Axis Travel…………… 120 +/-Deg

C Axis Travel…………… 360Deg

Rapid Rate X Axis……….. 2,362 IPM

Rapid Rate Y Axis……….. 2,362 IPM

Rapid Rate Z Axis……….. 2,362 IPM

Table Size……………… 19.68″ x 19.68

Max Table Load………….. 882 LBS

Spindle Motor…………… 30 HP

Spindle Speed…………… 12,000 RPM

Spindle Taper…………… BT-40

Tool Changer……………. 40 ATC
Dimensions:

L x W x H………………. 7200.0 × 3900.0 × 3200.0

Weight…………………. 14500 kg

Matsuura G-Tech 30i (FANUC)

Full 5 Axis Simultaneous

Renishawe Part Touch Probe

Chip Conveyor

Spindle speed 12,000 min-1 (grease lub.)

40 tool magazine (chain type)

Scale feedback (X/Y/Z)/Heidenhain

4th & 5th axis scales feedback

Coolant thru spindle / 300 PIS coolant pump

Thermal displacement compensation

Auto grease supply unit (X/Y/Z)

Microscraper 500 conveyor right hand side rear discharge

Rigid Tap

Data Server
