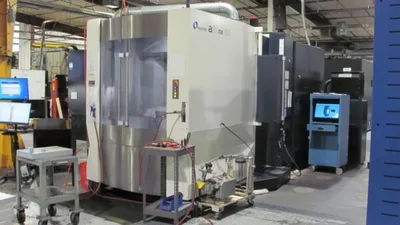

Makino A61NX-5E (5-Axis) – 2016

Pallet Size (Metric Type) ………………………………………………….. 400 mm x 400 mm 15.7″ x 15.7″
Note: This pallet is for the a61nx-5E ONLY and is not compatible with other 400mm machines
Axis Travel X, Column Longitudinal …………………………………. 730 mm 28.7″
Axis Travel Y, Spindle Vertical ………………………………………… 730 mm 28.7”
Axis Travel Z, Table Cross ………………………………………………. 680 mm 26.8″
Axis Travel B, C axis casting rotation …………………………………. 290° (-110° to +180°)
Axis Travel C, Pallet rotation …………………………………………….. Unlimited
Spindle Nose to B axis center ……………………………………………. 100 – 780mm 3.9″- 30.7″
Floor Space (W x D) w/o Accessories ………………………………… 2,910 x 5,187 mm 114.5” x 204.2”
Weight with ATC 60 ……………………………………………………….. 11,000 kg 24,250 lbs
Workzone Limitation (see limitation drawing)…………………….. 700 mm dia x SR400 27.5” dia x SR15.7”

Optional Core Cooled 24k Aero-Structure Spindle
Spindle Nose ……………………………………………………………. HSK63A only
Tooling ……………………………………………………………. HSK63A
Tool Clamp Force (mechanical) ………………………………………… 18.0 kN (HSK63A) 4,050 lbs.
Spindle Speed Range ……………………………………………………….. 50-24,000 RPM
Spindle Orientation ……………………………………………… Electric Servo Control
Spindle Acceleration Time (to 24,000 rpm) ……………………….. 2.0 sec / 2.0 sec (deceleration)
Drive Motor
25% ED Rating (14,000~24,000 rpm) ……………………. 80 kW AC 107 HP AC
Continuous ………………………………………………………… 60 kW AC 80 HP AC
