Makino A61NX – 2011
Overview

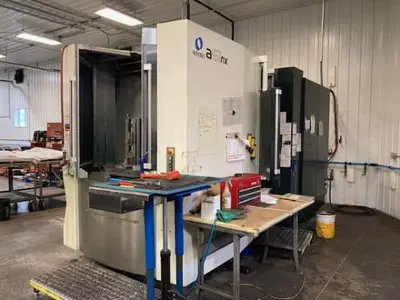

Makino A61NX CNC Horizontal Machining Center
Specs
Pallet: 19.7″ x 19.7″
X Axis Travel: 28.7″
Y Axis Travel: 25.6″
Z Axis Travel: 31.5″
Spindle RPM: 14,000 rpm
Rapid Traverse: 2,362ipm
Cutting Feedrate: 1,968ipm
Maximum Workpiece: 31.5″ x 39.4″
Maximum Payload: 1,100 lbs
ATC Capacity: 134 ATC
Tool to Tool: 0.9 sec
Chip to Chip: 2.5 sec
Maximum Tool Length: 20.1″
Maximum Tool Diameter: 6.7″
Maximum Tool Weight: 26.4 lbs
Equipped With
Pro 5 Control
14k RPM 302 N-m torque spindle
CAT 40
NC Rotary Table
TSC Flow Switch 300 PSI Thru Spindle Coolant and Air ??
Lift Up Chip Conveyor
134 ATC – Matrix
JV40 Chip Blaster
Mist Buster
Renishaw OMP400 Spindle Probe
600 Macro Common Variables & High-Speed Skip
NC4 laser ATLM BTS
Increased memory to max 16,400’ w/ 1,000 registered programs
Extra 48 work offsets
Memory type C options
200 Tool Offset Pairs
All available manuals and tooling
