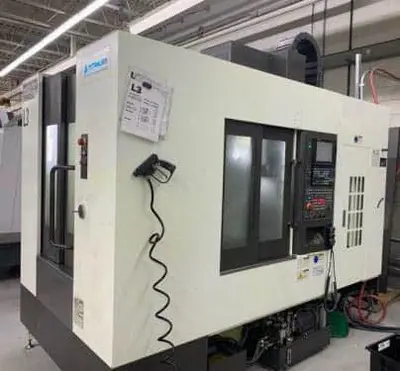

KITAMURA MYCENTER 2XD (2-Pallet) – 2017

KITAMURA MYCENTER 2XD “SPARK CHANGER” CNC VERTICAL MACHINIG CENTER

TRAVELS:

-X: 23.6″

-Y: 20.1″

-Z: 20.1″

TABLE SIZE: 15.7″ X 22.0″

SPINDLE TAPER: CAT. 40

SPINDLE SPEED: 12,000RPM,

TOOL STORAGE CAPACITY: 40 PCS.

TOOL CHANGE TIME (T-T/C-C): 2.2 SEC. /4.2 SEC.

RAPID FEED (X, Y X Z): 2,047IPM X/Y X 1,890IPM Z

POWER REQUIREMENT: 30KVA

AUTOMATIC PALLET CHANGER

BASE WASH COOLANT

COOLANT THRU SPINDLE “FIELD RETROFIT”

SCRAPER TYPE CHIP CONVEYOR

SCREW TYPE AUGER ON EACH SIDE OF BED CASTING

AUTO POWER OFF DEVICE

REMOTE JOG HANDLE

HIGH SPEED MACHINING

HIGH SPEED-HIGH ACCURACY CONTROL

USB DEVICE

KITAMURA COOLANT THRU SPINDLE OPTION
