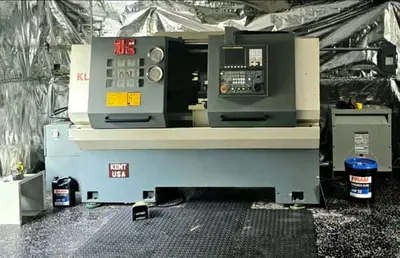

Kent KLS-1840N – 2013

Kent KLS1840N CNC Lathe

Swing Over Bed18″
Swing Over Cross Slide 9.84″
Distance Between Center 39.4″
Max Length of Work Piece 39.37”
Width of Bed 13.8″
Spindle Nose D8
Spindle Bore 3″
Spindle Taper M.T. #7
Spindle Speeds 100-2000 RPM
Longitudinal Travel (Z-Axis) 38″
Cross Slide Travel (X-Axis) 11″
Rapid Traverse Speed (Z/X-Axis) 394″/315″ /min
Spindle Motor 7.5 HP
Gross Weight 5720 lbs
Overall Dimension100″ x 55″ x 67″

Fanuc Series Oi Mate-TD
Tailstock
Turret
Chuck
