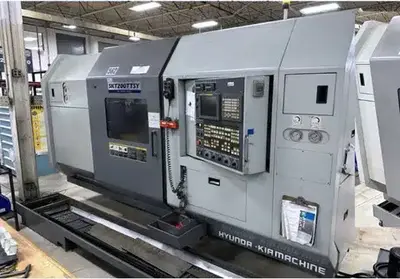

Hyundai Kia SKT-200TTSY – 2008

HYUNDAI KIA SKT200TTSY

SPECIFICATIONS
SWING OVER BED 30.7″
SWING OVER SADDLE 29.1″
MAXIMUM TURNING DIAMETER (UPPER / LOWER) 15.4″ / 11.8″
MAXIMUM TURNING DIAMETER / LENGTH 36.2″
MAIN SPINDLE SPEED 50 – 5000 RPM
SPINDLE BORE / BAR CAPACITY / NOSE 3.1″ / 2.56″ / A2-8
MOTOR 33/ 20 HP
SUB SPINDLE SPEED 50 – 5000 RPM
NUMBER OF TURRETS (2) 12 stations
ROTARY TOOL SPEED 4000 RPM
ROTARY TOOL MOTOR 7.3 / 5 HP
RAPID TRAVERSE ( X/Z ) 1181 IPM
DIMENSIONS 145″ x 89″ x 101″
APPROX. WEIGHT 23000 lbs
TRAVELS X-AXIS TRAVEL (UPPER / LOWER TURRET) 10.63″ / 7.48″
Z-AXIS TRAVEL (UPPER / LOWER TURRET) 36.22″ / 11.3″
C-INDEXING (BOTH SPINDLES) 360000 Degrees

OPTIONS / EQUIPPED WITH
•LNS TURBO CHIP CONVEYOR • COOLANT TANK
•TOOL PRESETTER • REMOTE JOG HANDLE
•PARTS CATCHER • BARFEED INTERFACE
•14 ID TOOLS • 11 OD TOOLS
•3 LIVE TOOLS
