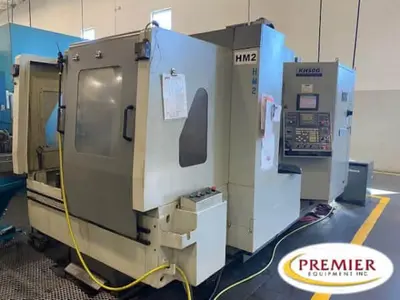

Hyundai Kia KH50G – 2011

HYUNDAI KIA KH 50G CNC HEAVY DUTY HORIZONTAL MACHINING CENTER

Specs

Number Of Pallets 2

X – Axis Travel 29.9″

Y – Axis Travel 27.8″

Z – Axis Travel 25.6″

Spindle Center To Table Top 0 ~ 29.5″

Spindle Nose To Table Center 5.3″ ~ 30.9″

Table Load Capcity 800 LBS.

B – Axis Indexing 1 DEGREE

Spindle Taper CAT #50

Spindle Speeds 8000 RPM

Spindle Speed Ranges 2

Foot Lbs. Of Torque 538 FT. LBS.

Spindle Motor 25 HP AC

Rapid Traverse X, Z, Y, 788, 788, 788 IPM

Cutting Feedrate 1 ~ 5000 IPM

Tool Change Time 5.5 SEC

Auto Tool Change 60 ATC

Max Tool Dia. 4.3″, 9.6”

Max Tool Length 15.7″

Maximum Tool Weight 44 LBS.

Machine Weight (approx.) 26,455 LBS

Equipped with

1000 PSI HIGH PRESSURE THRU SPINDLE COOLANT 2 SPEED GEARED HEADSTOCK

60 ATC TOOL CHANGER CHIP CONVEYOR

HAND HELD MPG RIGID TAPPING

SPINDLE CHILLER SPINDLE LOAD METER

SPINDLE RPM METER Fanuc Series 18iMB
