HURCO VMX64/40T – 2006

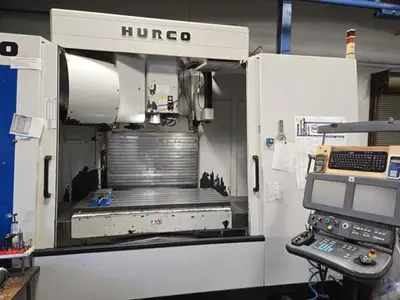

HURCO VMX-64/40T VERTICAL MACHINING CENTER

TABLE WORKING SURFACE …………….. 35″ x 66″ / 1,676 x 889mm
MAXIMUM WEIGHT ON TABLE …………… 6,000 LBS.
TABLE TRAVEL, X-AXIS (LONGITUDINAL) … 64″ / 1,625mm
TABLE TRAVEL, Y-AXIS (CROSS) ………. 34″ / 864mm
VERTICAL COLUMN TRAVEL (Z-AXIS) ……. 30″ / 762mm
SPINDLE NOSE TO TABLE …………….. 6″ TO 36″
SPINDLE CENTER TO COLUMN ………….. 38″
SPINDLE TAPER ……………………. CAT 40
NUMBER OF TOOLS ………………….. 24
SPINDLE SPEEDS, TWO RANGES ………… UP TO 10,000 R.P.M.
CUTTING FEED RATES, (X,Y, & Z AXES) … 0.01 TO 530 I.P.M.
RAPID FEED RATE, (X & Y AXES) ……… 709 I.P.M.
RAPID FEED RATE (Z-AXIS) ………….. 530 I.P.M.
APPROX SHIPPING DIMS ……………… 175″ x 114″ x 131.9″
APPROX WEIGHT ……………………. 30,000 Lbs.

– HURCO MODEL: ULTIMAX CONVERSATIONAL CONTROL
– DUAL ARM SIDE MOUNTED TOOL CHANGER (24) STATIONS
– AC SERVO MOTORS ON ALL AXES
– COOLANT THROUGH SPINDLE
– COOLANT SYSTEM
– 24 HORSE POWER AC DRIVE MOTOR
