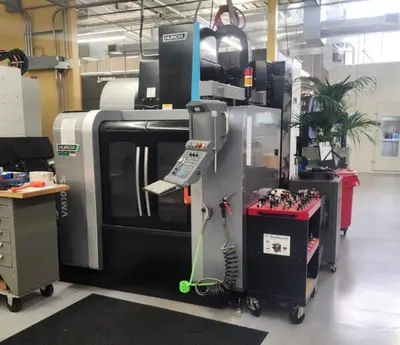

HURCO VM10HSi High Speed 30 Taper CNC Mill
Travels & Capacity:
X, Y, Z Axis Travel: 26.02 x 16.02 x 20 in (660 x 406 x 508 mm)
T-Slot Size: 3 x .71 in (3 x 18 mm)
Table Size: 30 x 16 in (762 x 406 mm)
Max. Weight on Table: 3,300 lbs (1,500 kg)
Spindle Nose to Table: 4.0 in (102 mm)
Spindle:
Max. Spindle Speed: 20,000 rpm
Spindle Power (peak – 1 min): 11.4 hp (8.5 kW)
Spindle Torque (peak – 1 min): 4.0 ft-lbs @1500 rpm (5.4 Nm @ 1500 rpm)
Tool Changer:
Tool Type: BT30
Number Of Tools: 20
Max Tool Diameter: 3.15 in (80 mm)
Max Tool Length: 9.8 in (250 mm)
Max Tool Weight: 6.6 lbs. (3.0 kg)
Feed Rates:
Rapid Traverse X,Y,Z Axis: 1,102 in/min (28 m/min)
Max. Programmable Feed rate: 1,102 in/min (28 m/min)
Required Floor Space: 126.1 x 133.7 in (3,204 x 3,395 mm)
Machine Height: 101.0 in (2,564 mm)
Machine Weight: 6,746 lbs. (3,060 kg)
