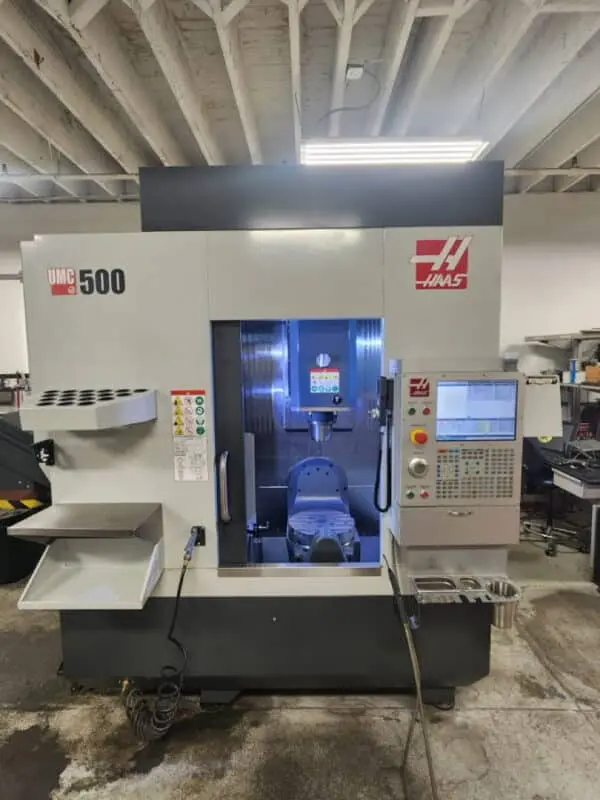

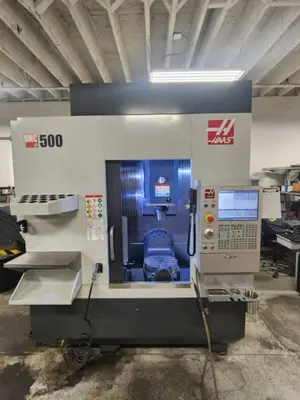

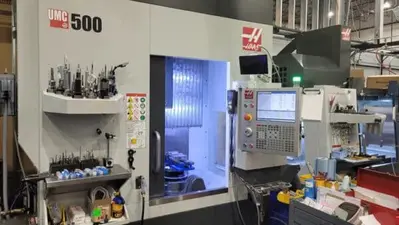

Haas UMC-500 5-Axis – 2020

HAAS UMC-500

X 24″

Y 16″

Z 16″

# AXIS 5

POWER 30 hp

RPM 8,100 RPM

# ATC 31

TAPER 40

Haas UMC-500 5 Axis Machining Center (2020)
TRAVELS S.A.E METRIC

X Axis 24.0 in 610 mm

Y Axis 16.0 in 406 mm

Z Axis 16.0 in 406 mm

Spindle Nose to Platter (~ max) 20.0 in 508 mm

Spindle Nose to Platter (~ min) 4.0 in 102 mm

SPINDLE S.A.E METRIC

Max Rating 30.0 hp 22.4 kW

Max Speed 8100 rpm 8100 rpm

Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm

Drive System Inline Direct-Drive Inline Direct-Drive

Taper CT40 | BT40 | HSK-A63 CT40 | BT40 | HSK-A63

Bearing Lubrication Air / Oil Injection Air / Oil Injection

Cooling Liquid Cooled Liquid Cooled

B AXIS – TILT S.A.E METRIC

Travel 120 ° to 35- ° 120 ° to 35- °

Max Speed 50 °/sec 50 °/sec

Max Torque 1854 ft-lbf 2514 Nm

Brake Torque 900 ft-lbf 1220 Nm

C AXIS – ROTATION S.A.E METRIC

Travel 360 ° 360 °

Max Speed 50 °/sec 50 °/sec

Max Torque 1854 ft-lbf 2514 Nm

Brake Torque 900 ft-lbf 1220 Nm

Max Part Swing 18.0 in 457 mm

PLATTER S.A.E METRIC

Platter Diameter 15.70 in 400 mm

Max Weight on Platter 500 lb 226.8 kg

Max Weight on Platter w/Pallet Pool 200 lb 90.7 kg

T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm

Number of Std T-Slots 5 5

T-Slot Center Distance 2.48 in 63 mm

FEEDRATES S.A.E METRIC

Max Cutting 650 ipm 16.5 m/min

Rapids on X 900 ipm 22.9 m/min

Rapids on Y 900 ipm 22.9 m/min

Rapids on Z 900 ipm 22.9 m/min

AXIS MOTORS S.A.E METRIC

Max Thrust X 3300 lbf 14680 N

Max Thrust Y 3300 lbf 14680 N

Max Thrust Z 4050 lbf 18015 N

TOOL CHANGER S.A.E METRIC

Type SMTC SMTC

Capacity 30+1 30+1

Max Tool Diameter (full) 2.5 in 64 mm

Max Tool Diameter (adjacent empty) 5.0 in 127 mm

Max Tool Length (from gage line) 12 in 305 mm

Max Tool Weight 12 lb 5.4 kg

Tool-to-Tool (avg) 2.80 s 2.8 s

Chip-to-Chip (avg) 3.60 s 3.6 s

GENERAL S.A.E METRIC

Coolant Capacity 55 gal 208 L

AIR REQUIREMENTS S.A.E METRIC

Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar

Inline Air Hose 3/8 in 3/8 in

Coupler (Air) 3/8 in 3/8 in

Air Pressure Min 80 psi 5.5 bar

DIMENSIONS – SHIPPING S.A.E METRIC

Domestic Pallet 128.0 in x 98.0 in x 110.0 in 325 cm x 249 cm x 279 cm

Export Pallet 128.0 in x 92.0 in x 101.0 in 325 cm x 234 cm x 257 cm

Export Crate 128 in x 101 in x 123 in 325 cm x 257 cm x 312 cm

Weight 11900 lb 5400.0 kg

Domestic Pallet w/Conveyor & 70+1 SMTC 128.0 in x 98.0 in x 120.0 in 325 cm x 249 cm x 305 cm

Export Crate w/Conveyor & 70+1 SMTC 128.5 in x 101.0 in x 141.5 in 326 cm x 257 cm x 359 cm

Weight w/Conveyor & 70+1 SMTC 13,320 lb 6,042.0 kg

ELECTRICAL SPECIFICATION S.A.E METRIC

Spindle Speed 8100 rpm 8100 rpm

Drive System Inline Direct-Drive Inline Direct-Drive

Spindle Power 30.0 hp 22.4 kW

Input AC Voltage (3 Phase) – Low 220 VAC 220 VAC

Full Load Amps (3 Phase) – Low 70 A 70 A

Input AC Voltage (3 Phase) – High* 440 VAC 440 VAC

Full Load Amps (3 Phase) – High* 35 A 35 A

5 Axis Trunnion

Hennig Lift Up Chip Conveyor

Coolant Through Spindle

Remote Jog Handwheel

30 Position ATC

Probing
